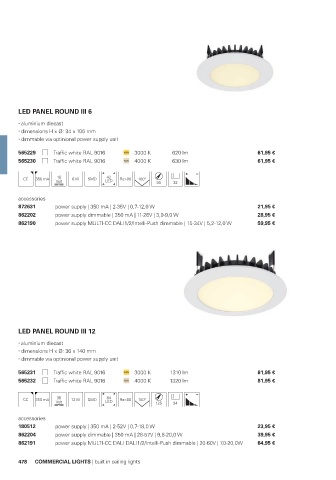

Page 480 - Deko-light Catalogue 2022
P. 480
LED PANEL ROUND III 6
aluminium diecast
dimensions H x Ø: 34 x 106 mm
dimmable via optinional power supply unit
565229 Traffic white RAL 9016 WW 3000 K 620 lm 61,95 €
565230 Traffic white RAL 9016 NW 4000 K 630 lm 61,95 €
42
CC 350 mA 18 6 W SMD LED Ra>80 100° 90 32
accessories
872631 power supply | 350 mA | 2-35V | 0,7-12,0 W 21,95 €
862202 power supply dimmable | 350 mA | 11-26V | 3,9-9,0 W 28,95 €
862190 power supply MULTI-CC DALI1/2/Intelli-Push dimmable | 15-34V | 5,2-12,0 W 59,95 €
LED PANEL ROUND III 12
aluminium diecast
dimensions H x Ø: 36 x 140 mm
dimmable via optinional power supply unit
565231 Traffic white RAL 9016 WW 3000 K 1310 lm 81,95 €
565232 Traffic white RAL 9016 NW 4000 K 1320 lm 81,95 €
84
CC 350 mA 36 13 W SMD LED Ra>80 100° 125 34
accessories
180512 power supply | 350 mA | 2-52V | 0,7-18,0 W 23,95 €
862204 power supply dimmable | 350 mA | 28-57V | 9,8-20,0 W 39,95 €
862191 power supply MULTI-CC DALI DALI1/2/Intelli-Push dimmable | 20-60V | 7,0-20,0W 64,95 €
478 COMMERCIAL LIGHTS | built in ceiling lights
