Page 506 - Deko-light Catalogue 2022
P. 506
Ra

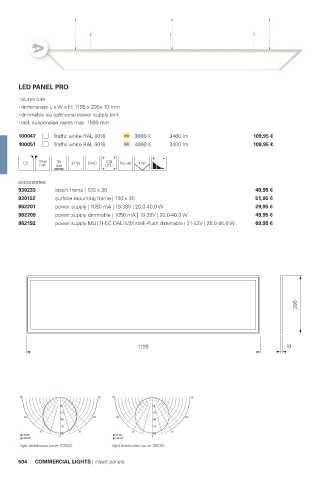

LED PANEL PRO
aluminium
dimensions L x W x H: 1195 x 295x 10 mm
dimmable via optinional power supply unit
incl. suspension ropes max. 1500 mm
100047 Traffic white RAL 9016 WW 3000 K 3460 lm 109,95 €
100051 Traffic white RAL 9016 NW 4000 K 3400 lm 109,95 €
216
CC 1050 35 37 W SMD LED Ra>90 110°
mA
accessories
930233 insert frame | 120 x 30 49,95 €
930152 surface mounting frame | 120 x 30 51,95 €
862201 power supply | 1050 mA | 19-38V | 20,0-40,0 W 29,95 €
862209 power supply dimmable | 1050 mA | 19-38V | 20,0-40,0 W 49,95 €
862192 power supply MULTI-CC DALI1/2/Intelli-Push dimmable | 21-43V | 25,0-45,0 W 69,95 €
295
1195 10
90 90 90 90
50 50
125 125
60 60 60 60
200 200
275 275
30 30 30 30
C0-180 0 366 C0-180 0 360
C90-270 C90-270
light distribution curve 100047 light distribution curve 100051
504 COMMERCIAL LIGHTS | insert panels
