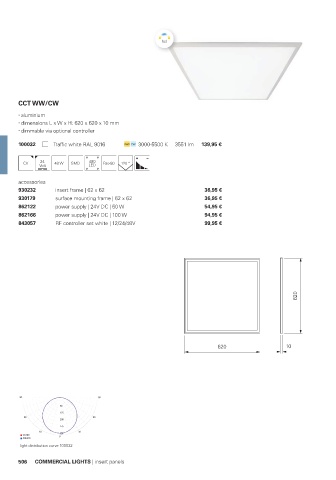

Page 508 - Deko-light Catalogue 2022
P. 508
hcl
CCT WW/CW
aluminium
dimensions L x W x H: 620 x 620 x 10 mm
dimmable via optional controller
100032 Traffic white RAL 9016 WW CW 3000-5500 K 3551 lm 139,95 €
480
CV 24 48 W SMD LED Ra>80 120 °
accessories
930232 insert frame | 62 x 62 36,95 €
930179 surface mounting frame | 62 x 62 36,95 €
862122 power supply | 24V DC | 50 W 54,95 €
862166 power supply | 24V DC | 100 W 94,95 €
843057 RF controller set white | 12/24/48V 99,95 €
620
620 10
90 90
50
125
60 60
200
275
30 30
C0-180 0 353
C90-270
light distribution curve 100032
506 COMMERCIAL LIGHTS | insert panels
