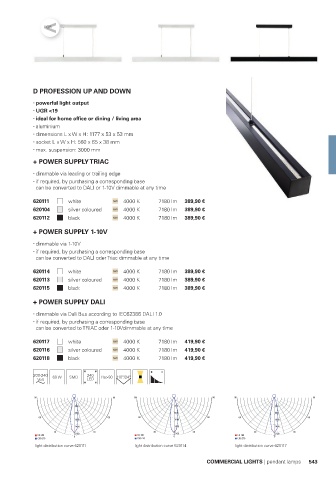

Page 545 - Deko-light Catalogue 2022
P. 545
UGR
D PROFESSION UP AND DOWN
powerful light output
UGR <19
ideal for home office or dining / living area
aluminium
dimensions L x W x H: 1177 x 53 x 53 mm
socket L x W x H: 560 x 65 x 38 mm
max. suspension: 3000 mm
+ POWER SUPPLY TRIAC
dimmable via leading or trailing edge
if required, by purchasing a corresponding base
can be converted to DALI or 1-10V dimmable at any time
620111 white NW 4000 K 7180 lm 389,90 €
620104 silver coloured NW 4000 K 7180 lm 389,90 €
620112 black NW 4000 K 7180 lm 389,90 €
+ POWER SUPPLY 1-10V
dimmable via 1-10V
if required, by purchasing a corresponding base
can be converted to DALI oder Triac dimmable at any time
620114 white NW 4000 K 7180 lm 389,90 €
620113 silver coloured NW 4000 K 7180 lm 389,90 €
620115 black NW 4000 K 7180 lm 389,90 €
+ POWER SUPPLY DALI
dimmable via Dali Bus according to IEC62386 DALI 1.0
if required, by purchasing a corresponding base
can be converted to TRIAC oder 1-10Vdimmable at any time
620117 white NW 4000 K 7180 lm 419,90 €
620116 silver coloured NW 4000 K 7180 lm 419,90 €
620118 black NW 4000 K 7180 lm 419,90 €
240
200-240 60 W SMD LED Ra>80 110°/24°
90 90 90 90 90 90
200 200 200
600 600 600
60 60 60 60 60 60
1000 1000 1000
1400 1400 1400
30 2109 30 30 2109 30 30 2109 30
C0-180 0 C0-180 0 C0-180 0
C90-270 C90-270 C90-270
light distribution curve 620111 light distribution curve 620114 light distribution curve 620117
COMMERCIAL LIGHTS | pendant lamps 543
