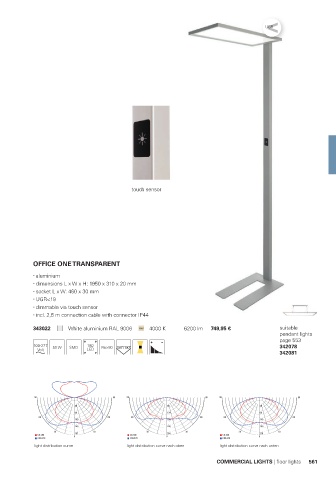

P. 563

UGR





























                                         touch sensor












           OFFICE ONE TRANSPARENT
           ‚ aluminium
           ‚ dimensions L x W x H: 1950 x 310 x 20 mm
           ‚ socket L x W: 460 x 30 mm
           ‚ UGR<19
           ‚ dimmable via touch sensor
           ‚ incl. 2,5 m connection cable with connector IP44
           343022      White aluminium RAL 9006    NW  4000 K  6200 lm  749,95 €       suitable
                                                                                       pendant lights
                                                                                       page 553
                            180
           100-277  50 W  SMD  LED  Ra>80 150°/150°                                    342078
                                                                                       342081






            90                        90    90                     90    90                    90
                        20                          60                           20
                        60                          120                          80
             60                   60     60                   60      60                   60
                        100                         180                          140
                        140                         240                          200
                  30          30              30          30              30          30
             C0-180      0    167        C0-180       0    304       C0-180       0    276
             C90-270                     C90-270                     C90-270
            light distribution curve    light distribution curve nach oben  light distribution curve nach unten
                                                                    COMMERCIAL LIGHTS | floor lights  561
