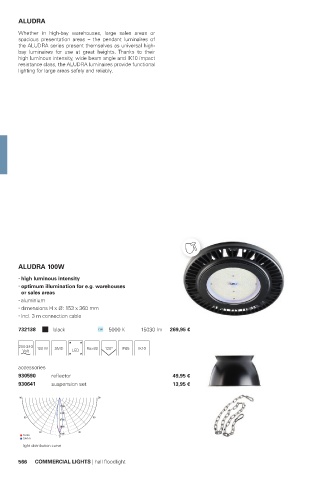

Page 568 - Deko-light Catalogue 2022
P. 568
ALUDRA
Whether in high-bay warehouses, large sales areas or
spacious presentation areas – the pendant luminaires of
the ALUDRA series present themselves as universal high-
bay luminaires for use at great heights. Thanks to their
high luminous intensity, wide beam angle and IK10 impact
resistance class, the ALUDRA luminaires provide functional
lighting for large areas safely and reliably.
ALUDRA 100W
high luminous intensity
optimum illumination for e.g. warehouses
or sales areas
aluminium
dimensions H x Ø: 153 x 360 mm
incl. 3 m connection cable
732138 black CW 5000 K 15030 lm 269,95 €
200-240 100 W SMD LED Ra>80 120° IP65 IK10
accessories
930590 reflector 49,95 €
930641 suspension set 13,95 €
90 90
1000
3000
60 60
4500
6000
30 8346 30
C0-180 0
C90-270
light distribution curve
566 COMMERCIAL LIGHTS | hall floodlight
