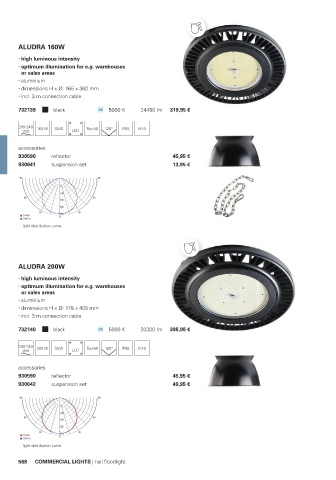

Page 570 - Deko-light Catalogue 2022
P. 570
ALUDRA 160W
high luminous intensity
optimum illumination for e.g. warehouses
or sales areas
aluminium
dimensions H x Ø: 165 x 360 mm
incl. 3 m connection cable
732139 black CW 5000 K 24450 lm 319,95 €
200-240 160 W SMD LED Ra>80 120° IP65 IK10
accessories
930590 reflector 45,95 €
930641 suspension set 13,95 €
90 90
25
100
60 60
200
300
30 30
C0-180 383
C90-270 0
light distribution curve
ALUDRA 200W
high luminous intensity
optimum illumination for e.g. warehouses
or sales areas
aluminium
dimensions H x Ø: 178 x 405 mm
incl. 3 m connection cable
732140 black CW 5000 K 30300 lm 395,95 €
200-240 200 W SMD LED Ra>80 120° IP65 IK10
accessories
930590 reflector 45,95 €
930642 suspension set 49,95 €
90 90
25
100
60 60
200
300
30 379 30
C0-180 0
C90-270
light distribution curve
568 COMMERCIAL LIGHTS | hall floodlight
