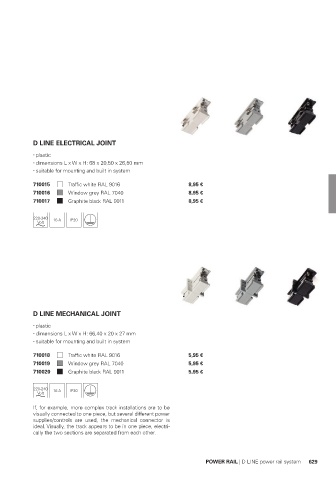

P. 631
D LINE ELECTRICAL JOINT
plastic
dimensions L x W x H: 68 x 20,50 x 26,50 mm
suitable for mounting and built in system
710015 Traffic white RAL 9016 8,95 €
710016 Window grey RAL 7040 8,95 €
710017 Graphite black RAL 9011 8,95 €
220-240
16 A IP20
D LINE MECHANICAL JOINT
plastic
dimensions L x W x H: 66,40 x 20 x 27 mm
suitable for mounting and built in system
710018 Traffic white RAL 9016 5,95 €
710019 Window grey RAL 7040 5,95 €
710020 Graphite black RAL 9011 5,95 €
220-240
16 A IP20
If, for example, more complex track installations are to be
visually connected to one piece, but several different power
supplies/controls are used, the mechanical connector is
ideal. Visually, the track appears to be in one piece, electri-
cally the two sections are separated from each other.
POWER RAIL | D LINE power rail system 629
