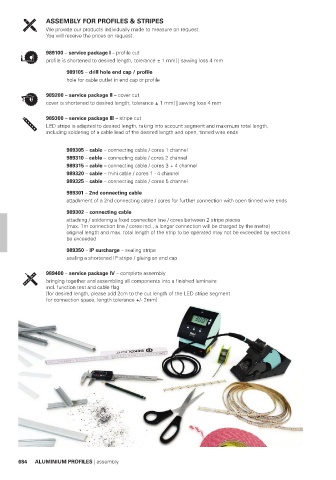

Page 686 - Deko-light Catalogue 2022

ASSEMBLY FOR PROFILES & STRIPES
We provide our products individually made to measure on request.
You will receive the prices on request.

989100 – service package I – profile cut
profile is shortened to desired length, tolerance ± 1 mm] | sawing loss 4 mm
989105 – drill hole end cap / profile
hole for cable outlet in end cap or profile

989200 – service package II – cover cut
cover is shortened to desired length, tolerance ± 1 mm] | sawing loss 4 mm

989300 – service package III – stripe cut
LED stripe is adapted to desired length, taking into account segment and maximum total length,
including soldering of a cable lead of the desired length and open, tinned wire ends

989305 – cable – connecting cable / cores 1 channel
989310 – cable – connecting cable / cores 2 channel
989315 – cable – connecting cable / cores 3 + 4 channel
989320 – cable – mini cable / cores 1 - 4 channel
989325 – cable – connecting cable / cores 5 channel
989301 – 2nd connecting cable
attachment of a 2nd connecting cable / cores for further connection with open tinned wire ends
989302 – connecting cable
attaching / soldering a fixed connection line / cores between 2 stripe pieces
[max. 1m connection line / cores incl., a longer connection will be charged by the metre]
original length and max. total length of the strip to be operated may not be exceeded by sections
be exceeded
989350 – IP surcharge – sealing stripe
sealing a shortened IP stripe / gluing an end cap

989400 – service package IV – complete assembly
bringing together and assembling all components into a finished luminaire
incl. function test and cable flag
[for desired length, please add 2cm to the cut length of the LED stripe segment
for connection space, length tolerance +/- 2mm]

684 ALUMINIUM PROFILES | assembly
