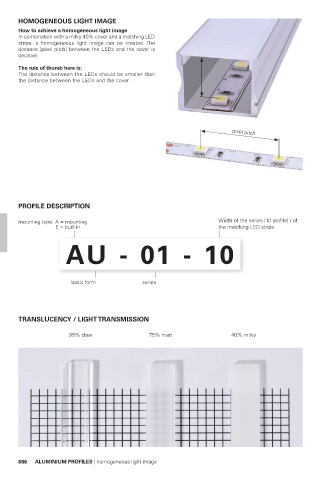

HOMOGENEOUS LIGHT IMAGE
How to achieve a homogeneous light image
In combination with a milky 40% cover and a matching LED
stripe, a homogeneous light image can be created. The
distance [pixel pitch] between the LEDs and the cover is
decisive.
The rule of thumb here is:
The distance between the LEDs should be smaller than
the distance between the LEDs and the cover.

pixel pitch

PROFILE DESCRIPTION

mounting type: A = mounting Width of the series [10 profile] / of
E = built-in the matching LED stripe

AU - 01 - 10

basic form series

TRANSLUCENCY / LIGHT TRANSMISSION

95% clear 75% matt 40% milky

686 ALUMINIUM PROFILES | homogeneous light image
