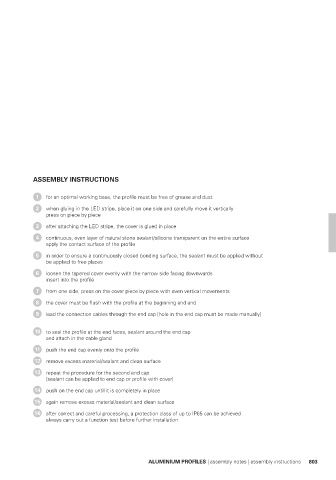

ASSEMBLY INSTRUCTIONS

1 for an optimal working base, the profile must be free of grease and dust
2 when gluing in the LED stripe, place it on one side and carefully move it vertically
press on piece by piece
3 after attaching the LED stripe, the cover is glued in place
4 continuous, even layer of natural stone sealant/silicone transparent on the entire surface
apply the contact surface of the profile
5 in order to ensure a continuously closed bonding surface, the sealant must be applied without
be applied to free places
6 loosen the tapered cover evenly with the narrow side facing downwards
insert into the profile
7 from one side, press on the cover piece by piece with even vertical movements
8 the cover must be flush with the profile at the beginning and end

9 lead the connection cables through the end cap [hole in the end cap must be made manually]

10 to seal the profile at the end faces, sealant around the end cap
and attach in the cable gland
11 push the end cap evenly onto the profile

12 remove excess material/sealant and clean surface
13 repeat the procedure for the second end cap
[sealant can be applied to end cap or profile with cover]
14 push on the end cap until it is completely in place
15 again remove excess material/sealant and clean surface

16 after correct and careful processing, a protection class of up to IP65 can be achieved
always carry out a function test before further installation
