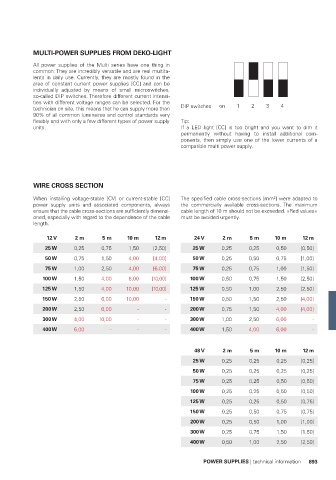

Page 895 - Deko-light Catalogue 2022

MULTI-POWER SUPPLIES FROM DEKO-LIGHT

All power supplies of the Multi series have one thing in
common: They are incredibly versatile and are real multita-
lents in daily use. Currently, they are mostly found in the
area of constant current power supplies [CC] and can be
individually adjusted by means of small microswitches,
so-called DIP switches. Therefore different current intensi-
ties with different voltage ranges can be selected. For the
technician on site, this means that he can supply more than DIP switches on 1 2 3 4
90% of all common luminaires and control standards very
flexibly and with only a few different types of power supply Tip:
units. If a LED light [CC] is too bright and you want to dim it
permanently without having to install additional com-
ponents, then simply use one of the lower currents of a
compatible multi power supply.

WIRE CROSS SECTION

When installing voltage-stable [CV] or current-stable [CC] The specified cable cross-sections [mm²] were adapted to
power supply units and associated components, always the commercially available cross-sections. The maximum
ensure that the cable cross-sections are sufficiently dimensi- cable length of 10 m should not be exceeded. »Red values«
oned, especially with regard to the dependence of the cable must be avoided urgently.
length.

12 V 2 m 5 m 10 m 12 m 24 V 2 m 5 m 10 m 12 m
25 W 0,25 0,75 1,50 [2,50] 25 W 0,25 0,25 0,50 [0,50]
50 W 0,75 1,50 4,00 [4,00] 50 W 0,25 0,50 0,75 [1,00]
75 W 1,00 2,50 4,00 [6,00] 75 W 0,25 0,75 1,00 [1,50]
100 W 1,50 4,00 6,00 [10,00] 100 W 0,50 0,75 1,50 [2,50]
125 W 1,50 4,00 10,00 [10,00] 125 W 0,50 1,00 2,50 [2,50]
150 W 2,50 6,00 10,00 - 150 W 0,50 1,50 2,50 [4,00]
200 W 2,50 6,00 - - 200 W 0,75 1,50 4,00 [4,00]
300 W 4,00 10,00 - - 300 W 1,00 2,50 6,00 -
400 W 6,00 - - - 400 W 1,50 4,00 6,00 -

48 V 2 m 5 m 10 m 12 m
25 W 0,25 0,25 0,25 [0,25]
50 W 0,25 0,25 0,25 [0,25]
75 W 0,25 0,25 0,50 [0,50]
100 W 0,25 0,25 0,50 [0,50]
125 W 0,25 0,25 0,50 [0,75]
150 W 0,25 0,50 0,75 [0,75]
200 W 0,25 0,50 1,00 [1,00]
300 W 0,25 0,75 1,50 [1,50]
400 W 0,50 1,00 2,50 [2,50]

POWER SUPPLIES | technical information 893
