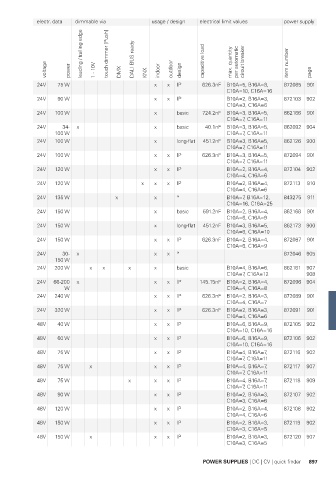

Page 899 - Deko-light Catalogue 2022

electr. data dimmable via usage / design electrical limit values power supply
leading / trailing edge touch dimmer [Push] DALI BUS ready capacitive load

voltage power 1 - 10V DMX KNX indoor outdoor design max. quantity per automatic circuit breaker item number page

24V 75 W x x IP 626.3nF B10A=5, B16A=8, 872085 901
C10A=10, C16A=16
24V 90 W x x IP B10A=2, B16A=3, 872103 902
C10A=3, C16A=6
24V 100 W x basic 724.2nF B10A=3, B16A=5, 862166 901
C10A=7, C16A=11
24V 34- x x basic 40.1nF B10A=3, B16A=5, 862092 904
100 W C10A=7, C16A=11
24V 100 W x long-flat 451.2nF B10A=3, B16A=5, 862126 900
C10A=7, C16A=11
24V 100 W x x IP 626.3nF B10A=3, B16A=5, 872094 901
C10A=7, C16A=11
24V 120 W x x IP B10A=2, B16A=4, 872104 902
C10A=4, C16A=6
24V 120 W x x x IP B10A=2, B16A=4, 872113 910
C10A=4, C16A=6
24V 135 W x x * B10A=7, B16A=12, 843275 911
C10A=16, C16A=25
24V 150 W x basic 591.2nF B10A=2, B16A=4, 862168 901
C10A=6, C16A=9
24V 150 W x long-flat 451.2nF B10A=3, B16A=5, 862173 900
C10A=6, C16A=10
24V 150 W x x IP 626.3nF B10A=2, B16A=4, 872087 901
C10A=6, C16A=9
24V 30- x x x * 872046 905
150 W
24V 200 W x x x x basic B10A=4, B16A=6, 862161 907
C10A=7, C16A=12 908
24V 66-200 x x x IP 145.15nF B10A=2, B16A=4, 872096 904
W C10A=4, C16A=8
24V 240 W x x IP 626.3nF B10A=2, B16A=3, 872089 901
C10A=4, C16A=7
24V 320 W x x IP 626.3nF B10A=2, B16A=3, 872091 901
C10A=4, C16A=6
48V 40 W x x IP B10A=6, B16A=9, 872105 902
C10A=10, C16A=16
48V 60 W x x IP B10A=6, B16A=9, 872106 902
C10A=10, C16A=16
48V 75 W x x IP B10A=4, B16A=7, 872116 902
C10A=7, C16A=11
48V 75 W x x x IP B10A=4, B16A=7, 872117 907
C10A=7, C16A=11
48V 75 W x x x IP B10A=4, B16A=7, 872118 909
C10A=7, C16A=11
48V 90 W x x IP B10A=2, B16A=3, 872107 902
C10A=3, C16A=6
48V 120 W x x IP B10A=2, B16A=4, 872108 902
C10A=4, C16A=6
48V 150 W x x IP B10A=2, B16A=3, 872119 902
C10A=3, C16A=5
48V 150 W x x x IP B10A=2, B16A=3, 872120 907
C10A=3, C16A=5

POWER SUPPLIES | DC | CV | quick finder 897
