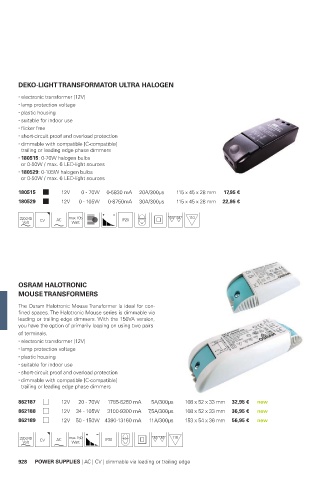

Page 930 - Deko-light Catalogue 2022
P. 930
DEKO-LIGHT TRANSFORMATOR ULTRA HALOGEN
electronic transformer [12V]
lamp protection voltage
plastic housing
suitable for indoor use
flicker free
short-circuit proof and overload protection
dimmable with compatible [C-compatible]
trailing or leading edge phase dimmers
180515: 0-70W halogen bulbs
or 0-50W / max. 6 LED-light sources
180529: 0-105W halogen bulbs
or 0-50W / max. 6 LED-light sources
180515 12V 0 - 70W 0-5830 mA 20A/300µs 115 x 45 x 28 mm 17,95 €
180529 12V 0 - 105W 0-8750mA 30A/300µs 115 x 45 x 28 mm 22,95 €
220-240 CV max. 105 IP20 M M
OSRAM HALOTRONIC
MOUSE TRANSFORMERS
The Osram Halotronic Mouse Transformer is ideal for con-
fined spaces. The Halotronic Mouse series is dimmable via
leading or trailing edge dimmers. With the 150VA version,
you have the option of primarily looping on using two pairs
of terminals.
electronic transformer [12V]
lamp protection voltage
plastic housing
suitable for indoor use
short-circuit proof and overload protection
dimmable with compatible [C-compatible]
trailing or leading edge phase dimmers
862187 12V 20 - 70W 1785-6250 mA 5A/300µs 108 x 52 x 33 mm 32,95 € new
862188 12V 34 - 105W 3100-9300 mA 7,5A/300µs 108 x 52 x 33 mm 36,95 € new
862189 12V 50 - 150W 4390-13160 mA 11A/300µs 153 x 54 x 36 mm 56,95 € new
220-240 CV max. 150 IP20 M M
928 POWER SUPPLIES | AC | CV | dimmable via leading or trailing edge
