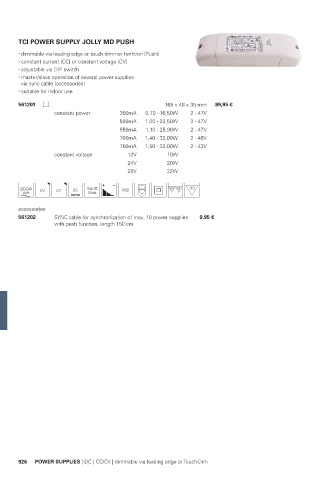

Page 928 - Deko-light Catalogue 2022
P. 928
TCI POWER SUPPLY JOLLY MD PUSH
dimmable via leading edge or touch dimmer funktion [Push]
constant current [CC] or constant voltage [CV]
adjustable via DIP switch
master/slave operation of several power supplies
via sync cable [accessories]
suitable for indoor use
561201 165 x 48 x 35 mm 89,95 €
constant power 350mA 0,70 - 16,50W 2 - 47V
500mA 1,00 - 23,50W 2 - 47V
550mA 1,10 - 25,90W 2 - 47V
700mA 1,40 - 32,00W 2 - 46V
750mA 1,50 - 32,00W 2 - 43V
constant voltage 12V 10W
24V 20W
28V 22W
220-240 CV CC max 32 IP20 M M
accessories
561202 SYNC cable for synchronization of max. 10 power supplies 9,95 €
with push function, length 150 cm
926 POWER SUPPLIES | DC | CC/CV | dimmable via leading edge or Touch-Dim
