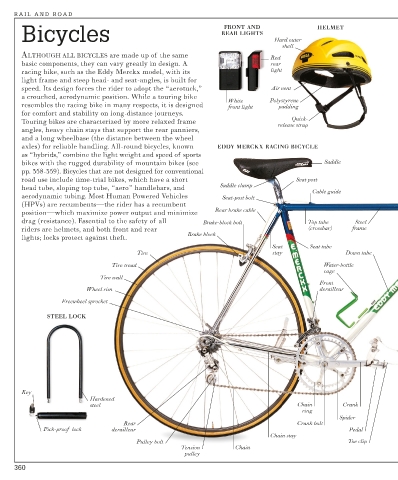

Page 362 - (DK) The Ultimate Visual Dictionary 2nd Ed.

RAIL AND ROAD
Bicycles REAR LIGHTS Hard outer HELMET
FRONT AND

shell
ALTHOUGH ALL BICYCLES are made up of the same Red
basic components, they can vary greatly in design. A rear
racing bike, such as the Eddy Merckx model, with its light
light frame and steep head- and seat-angles, is built for
speed. Its design forces the rider to adopt the “aerotuck,” Air vent
a crouched, aerodynamic position. While a touring bike
White Polystyrene
resembles the racing bike in many respects, it is designed front light padding
for comfort and stability on long-distance journeys.
Quick-
Touring bikes are characterized by more relaxed frame
release strap
angles, heavy chain stays that support the rear panniers,
and a long wheelbase (the distance between the wheel
axles) for reliable handling. All-round bicycles, known EDDY MERCKX RACING BICYCLE
as “hybrids,” combine the light weight and speed of sports
bikes with the rugged durability of mountain bikes (see Saddle
pp. 358-359). Bicycles that are not designed for conventional
road use include time-trial bikes, which have a short Seat post
head tube, sloping top tube, “aero” handlebars, and Saddle clamp
Cable guide
aerodynamic tubing. Most Human Powered Vehicles Seat-post bolt
(HPVs) are recumbents—the rider has a recumbent
Rear brake cable
position—which maximize power output and minimize
drag (resistance). Essential to the safety of all Brake-block bolt Top tube Steel
riders are helmets, and both front and rear (crossbar) frame
Brake block
lights; locks protect against theft.
Seat Seat tube
Tire stay Down tube
Tire tread Water-bottle
cage
Tire wall
Front
Wheel rim derailleur
Freewheel sprocket
STEEL LOCK

Key
Hardened
steel Chain Crank
ring
Spider
Rear Crank bolt
Pick-proof lock derailleur Pedal
Chain stay
Pulley bolt Toe clip
Tension Chain
pulley
