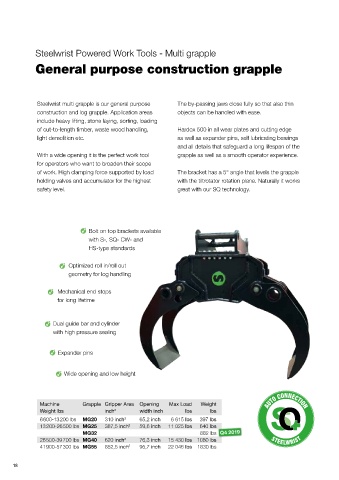

Steelwrist Powered Work Tools - Multi grapple

General purpose construction grapple

Steelwrist multi grapple is our general purpose The by-passing jaws close fully so that also thin
construction and log grapple. Application areas objects can be handled with ease.
include heavy lifting, stone laying, sorting, loading
of cut-to-length timber, waste wood handling, Hardox 500 in all wear plates and cutting edge
light demolition etc. as well as expander pins, self lubricating bearings
and all details that safeguard a long lifespan of the
With a wide opening it is the perfect work tool grapple as well as a smooth operator experience.
for operators who want to broaden their scope
of work. High clamping force supported by load The bracket has a 5° angle that levels the grapple
holding valves and accumulator for the highest with the tiltrotator rotation plane. Naturally it works
safety level. great with our SQ technology.

Bolt on top brackets available
with S-, SQ- CW- and
HS-type standards

Optimized roll in/roll out
geometry for log handling

Mechanical end stops
for long lifetime

Dual guide bar and cylinder
with high pressure sealing

Expander pins

Wide opening and low height

Machine Grapple Gripper Area Opening Max Load Weight
Weight lbs inch 2 width inch lbs lbs AUTO CONNECTION
6600-13200 lbs MG20 310 inch 2 65,2 inch 6 615 lbs 397 lbs
13200-26500 lbs MG25 387,5 inch 2 59,6 inch 11 025 lbs 640 lbs
MG32 882 lbs Q4 2019
26500-39700 lbs MG40 620 inch 2 76,3 inch 15 430 lbs 1080 lbs STEELWRIST
41900-57300 lbs MG55 852,5 inch 2 95,7 inch 22 046 lbs 1830 lbs
