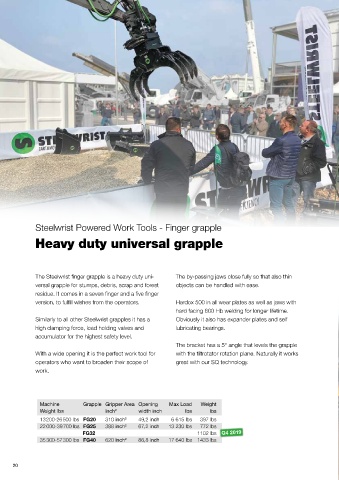

Steelwrist Powered Work Tools - Finger grapple

Heavy duty universal grapple

The Steelwrist finger grapple is a heavy duty uni- The by-passing jaws close fully so that also thin
versal grapple for stumps, debris, scrap and forest objects can be handled with ease.
residue. It comes in a seven finger and a five finger
version, to fulfill wishes from the operators. Hardox 500 in all wear plates as well as jaws with
hard facing 600 Hb welding for longer lifetime.
Similarly to all other Steelwrist grapples it has a Obviously it also has expander plates and self
high clamping force, load holding valves and lubricating bearings.
accumulator for the highest safety level.
The bracket has a 5° angle that levels the grapple
With a wide opening it is the perfect work tool for with the tiltrotator rotation plane. Naturally it works
operators who want to broaden their scope of great with our SQ technology.
work.

Machine Grapple Gripper Area Opening Max Load Weight
Weight lbs inch 2 width inch lbs lbs
13200-26500 lbs FG20 310 inch 2 49,2 inch 6 615 lbs 397 lbs
22 000-39700 lbs FG25 388 inch 2 67,2 inch 13 230 lbs 772 lbs
FG32 1102 lbs Q4 2019
35300-57300 lbs FG40 620 inch 2 86,8 inch 17 640 lbs 1433 lbs
