3-SEAT ENCLOSED CABIN

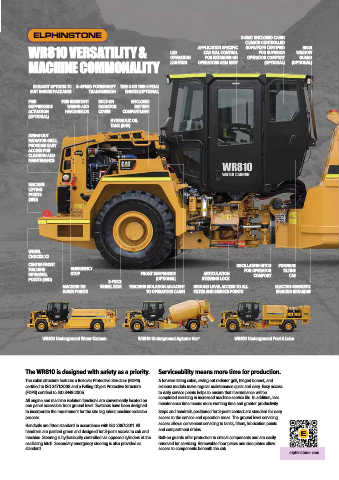

WR810 VERSATILITY & LED APPLICATION SPECIFIC ROPS/FOPS CERTIFIED WINDOW
CLIMATE CONTROLLED
REAR
CAB DIAL CONTROL
FOR SUPERIOR
OPERATION
OPERATOR COMFORT
GUARD
FOR RETARDER ON
MACHINE COMMONALITY LIGHTING OPERATORS ARM REST (OPTIONAL) (OPTIONAL)
EXHAUST OPTIONS TO 5 -SPEED POWERSHIFT TIER 3 OR TIER 4 FINAL
SUIT ENGINE PACKAGES TRANSMISSION ENGINE (OPTIONAL)
FIRE FIRE RESISTANT BOLT-ON ENCLOSED
SUPPRESSION WIRING AND RADIATOR BATTERY
ACTUATION HEATSHIELDS COVER COMPARTMENT
(OPTIONAL)
HYDRAULIC OIL
TANK (RHS)
SWING OUT
RADIATOR GRILL
PROVIDES EASY
ACCESS FOR
CLEANING AND
MAINTENANCE

MACHINE
LIFTING
POINTS
(RED)

WHEEL
CHOCKS X2
CENTRE FRONT OSCILLATING HITCH FORWARD
MACHINE EMERGENCY FOR OPERATOR TILTING
RETRIEVAL STOP FRONT SUSPENSION ARTICULATION COMFORT CAB
POINTS (RED) 3-PIECE (OPTIONAL) STEERING LOCK
MACHINE TIE WHEEL RIMS MACHINE ISOLATION ADJACENT GROUND LEVEL ACCESS TO ALL ELECTRO-MAGNETIC
DOWN POINTS TO OPERATORS CABIN FILTER AND SERVICE POINTS BRAKING RETARDER

WR810 Underground Water Cannon WR810 Underground Agitator 6m 3 WR810 Underground Fuel & Lube

The WR810 is designed with safety as a priority. Serviceability means more time for production.

The cabin structure features a Rollover Protective Structure (ROPS) A forward tilting cabin, swing out radiator grill, hinged bonnet, and
certified to ISO 3471:2008 and a Falling Object Protective Structure exhaust module make regular maintenance quick and easy. Easy access
(FOPS) certified to ISO 3449:2005. to daily service points helps to ensure that maintenance will be
All engine and machine isolation functions are conveniently located on completed resulting in increased machine service life. In addition, less
one panel accessible from ground level. Switches have been designed maintenance time means more working time and greater productivity.
to incorporate the requirement for the site tag in/out machine isolation Steps and handrails positioned for 3-point contact are standard for easy
process. access to the service and operation areas. The ground level servicing
Handrails are fitted standard in accordance with ISO 2867:2011. All access allows convenient servicing to tanks, filters, lubrication points
handrails are painted green and designed for 3-point access to cab and and compartment drains.
machine. Steering is hydraulically controlled via opposed cylinders at the Bolt-on guards o”er protection to critical components and are easily
oscillating hitch. Secondary emergency steering is also provided as removed for servicing. Removable floor plates and side plates allow
standard. access to components beneath the cab.
