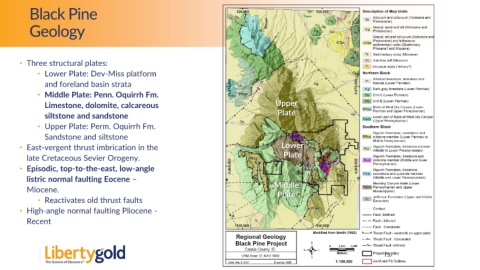

Black Pine

Geology

• Three structural plates:

• Lower Plate: Dev-Miss platform

and foreland basin strata
• Middle Plate: Penn. Oquirrh Fm.

Limestone, dolomite, calcareous Upper

siltstone and sandstone Plate
• Upper Plate: Perm. Oquirrh Fm.

Sandstone and siltstone

• East-vergent thrust imbrication in the Lower
late Cretaceous Sevier Orogeny. Plate

• Episodic, top-to-the-east, low-angle

listric normal faulting Eocene –
Miocene. Middle
Plate
• Reactivates old thrust faults
• High-angle normal faulting Pliocene -

Recent
