>        Predictore                               TM         – Our Process





                     Terrane Scale Analysis – geophysical processing






















                                                                                                                                                                                5km











                      Sources: Hornby et al. 1999
                                                                                      30km
                     Synthetic model of upward continued

                     worm sheets in response to an
                     inclined cylinder
                                                                                                                                                                                                                                                     Mt Isa, Qld




                                                                                                                                                                        Examples of gravity worms in
                                                                                                                                             Cobar, NSW
                                                                                                                                                                        selected Australian terranes
















                   Sources:

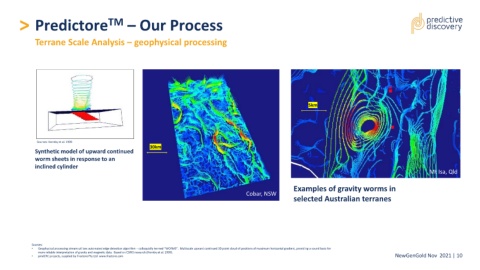

                   •   Geophysical processing stream utilises automated edge detection algorithm – colloquially termed “WORMS”.  Multiscale upward continued 3D point cloud of positions of maximum horizontal gradient, providing a sound basis for
                       more reliable interpretation of gravity and magnetic data.  Based on CSIRO research (Hornby et al. 1999).
