Appendix 593

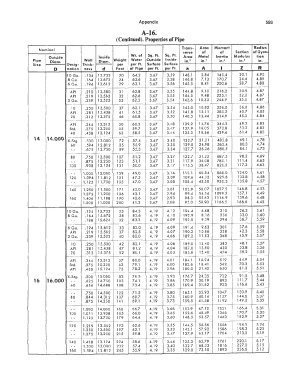

A-16.
(Continued). Properties of Pipe
Trans- Area Momeni Radius
Nominal
verse of of Section of Gyra
! Outside Inside Wt. of Sq. Ft. Sq. Ft. Area Metal Inertia Modulus tion
Pipe Diam. Wall Diam. Weight Waler Outside Inside in.2 in.2 in.• in.? in.
Size Desig- Thick- per per Ft. Surface Surface .----.----+-----.-----..----,
D nation ness d Foot of Pipe per Ft. per Ft. 11 A I Z R
10 Go. .134 13.732 20 64.2 3.67 3.59 148.1 5.84 140.4+20.1 4.90
8 Go. .164 13.672 2l4t 3.67 3.58 146.8 7.13 170.7 24.4 4.89
63.6
6 Go. j .194
29
---- -t---- 13.612 - 63.1 3.67 3.56 145.5 8.41 200.6 28.7 .._ 4.88 _
-----l------+--- ------ ·- - ·- --
A � . I 13.580 31 62.8 3.67 3.55 144.8 9.10 225. l I 30.9 4.87
216.2
� 12: l O
API .219 13.562 32 62.6 3.67 3.55 144.5 9.48 ?2.2 4.87
- � Go. .2 � - �� -522_ - � .:._,_ � :=_+ � 67 3.54 __ 143. � - _20.3:_ �� - �� 5.0 4.87
l O .250 13.500 37 62. l I 3.67 3.54 143.0 l 0.82 256.0 I 36.6 4.86
API I .281 13.438 41 61.5 3.67 3.52 141.8 12. l l 285.2 1. 40.7 4.85
.
20 .312 13.375 46 60.8 3.67 3.50 140.5 13.44 i 314.9 45.0 4.84
-------- --·---1-------� -·-----L------------·--�--·--1--- ·-- ---
API .344 13.312 50 60.3 3.67 3.48 139.2 14.76 344.3 49.2 4.83
Std. .37 5 13.250 55 59.7 3.67 3.47 137.9 16.05 372.8 53.2 4.82
18.66
135.3
3.44
3.67
40 .438 13.124 63 58.5 ----� ----·-�--·--L--�--- 429.6 -4 61.4 _,_ 4.80 _
x-6�-;- :�gf -i}if �- �� QJ5f:i-- 3.40 132.7 21.21 483.8 69.1 4.78
14 14.000 ;:�;
4.74
26.26
84. i
588.5
3.34
127.7
.6'.:'5 12.750 89 55.3 3.67 3.35 129.0 24.98 562.4 80.3 4.73
>------ - . "--·-- -----i------1------- -- . -·:-!-·· - - ----1----·-
80 .750 12.500 107 51.2 3.67 3.27 122.7 31.221 687.5 98.2 4.69
- . .875 12.250 123 51.l 3.67 3.21 117.9 36.08 780.1 111.4 4.65
iOO .938 12.124 131 50.0 3.67 3.17 115.5 38.47 820.5 117.2 4.63
--- L-----------1-------- L___ --1-----------1-----
--·-------·-·
- - 1.000 12.000 139 49.0 3.67 3.14 113.1 40.84 868.0 124.0 4.61
120 � 1 .094 11 .812 151 47.5 3.67 3.09 109.6 44.32 929.8 132.8 4.58
- - l.125 11.750 155 47.0 3.67 3.08 108.4 45.50 950.3 135.8 4.57
�·-- ----·-- --·--- ----�----1------1---- ·-·-- -··-- --- --------- ·- -l...-----····---�--
140 1.250 11.500 171 45.0 3.67 3.01 l 03.9 50.07 l 027.5 146.8 4.53
- - 11.375 11.250 186 43.l 3.67 2.94 99.4 54.54 1099.5 157.l 4.49
160 1.406 11.188 190 42.6 3.67 2.93 98.3 55.63 1116. 9 159.6 4.48
- - 1.500 11.000 200 41.2 3.67 2.86 95.0 58.90 1166.5 166.6 4.45
10 Go. .134 15.732 23 84.3 4.19 4.12 194.4 6.68 210 26.3 5.61
8 Go. .164 15.672 28 83.6 4.19 4.10 192.9 8.16 256 32.0 5.60
.188 15.624 32 83.3 4.19 4.09 192.0 9.39 294 36.7 5.59
·-·I----·----- --··-+------1-------1----
--------+-- -- -------- --- -- ----- ----1----
6 Go. j .194 15.612 33 83.0 4.19 4.09 191.4 9.63 301 37.6 5.59
API .219 15.562 37 82.5 4.19 4.07 190.2 1 0.86 338 42.3 5.58
3 Go. .239 15.522 40 82.0 4.19 4.06 189.2 11.83 368 45.9 5.57
__
'-----''---·- -----+-----1------'--- . __ ,_____ --- ---·--
---- --· ·--i-----
10 .250 15.500 42 82.l 4.19 4.06 1 89.0 12.40 385 48. l 5.57
API .281 15.438 47 81.2 4.19 4.04 187.0 13.90 430 53.8 5.56
20 .312 15.375 52 80. l 4.19 4.03 185.6 15.40 47 4 59.2 5.55
L----- -·--!--
t---- ----- ---··----"'-----·+------!-- --- ---··- - ------- - --
--+-----
API .344 15.312 57 80.0 4.19 4.01 184. l 16.94 519 64.9 5.54
Std. .375 15.250 63 79. l 4.19 4.00 182.6 18.41 562 70.3 5.53
API .438 15.124 73 78.2 4.19 3.96 180.0 21.42 650 81.2 5.51
1----l------ ----�---�------1-----+----+--··-�--·-+------1----�----
X-Stg .. 15.000 83 76.5 4.19 3.93 176.7 24.35 732 91.5 5.48
500
16 16.000 .625 14.750 l 03 7 4.1 4.19 3.86 170.9 30.19 893 11 i .7 5.44
60 .656 14.688 l 08 73.4 4.19 3.85 169.4 31.62 933 i 16.6 5.43
----!------- ----- --··----+---·- ----�--�---J-------1----+----·-·-,__. __
L-
.750 14.500 122 71.5 4.19 3.80 165.1 35.93 1047 130.9 5.40
80 .844 14.312 137 69.7 4.19 3.75 160.9 40.14 1157 144.6 5.37
.875 14.250 141 69.1 4.19 3.73 159.5 41.58 li92 149.0 5.35
-- ------1------t,------·------1------1-----------L------1-----+----
1.000 14.000 160 66.7 4.19 3.66 153.9 47.12 1331 i66.4 5.31
100 1.0�1 13.938 165 66.0 4.19 3.65 152.6 48.49 1366 170.7 5.30
1.125 13.750 179 64.4 4.19 3.60 148.5 52.57 1463 ! 82.9 5.27
--·--1-----+--·----t--- - - ----- ------ ---+--·-- '-----+-----
.__
<----
120 l.219 13.562 193 62.6 4.19 3.55 144.5 56.56 1556 i 94.5 5.24
l.250 13.500 197 62. l 4.19 3.53 143. l 57.92 1586 i 98.3 5.23
l.375 13.250 215 59.8 4.19 3.47 137.9 63.17 1704 213.0 5.19
--------------- -+---t---· � ----l---·--->-----+·-·····
140 l.438 13.124 224 58.6 4.19 3.44 135.3 65.79 1761 220.l 5.17
1.500 13.000 232 57.4 4.19 3.40 132.7 68.33 1816 227.0 5.15
160 l.594 12.812 245 55.9 4.19 3.35 129.0 72.10 1893 236.6 5.12
