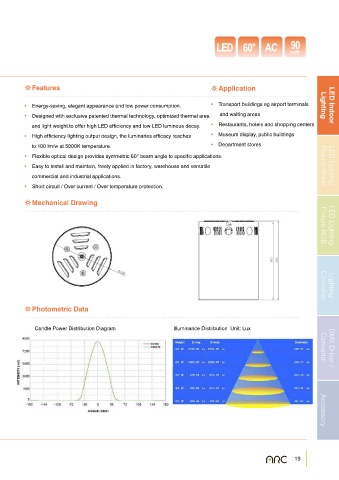

Page 20 - ARC KATALOG

LED 60° AC 90
lm/W

Features Application

• Energy-saving, elegant appearance and low power consumption. • Transport buildings eg airport terminals Lighting LED Indoor

• Designed with exclusive patented thermal technology, optimized thermal area and waiting areas
and light weight.to offer high LED ef ciency and low LED luminous decay. • Restaurants, hotels and shopping centers
• High ef ciency lighting output design, the luminaries ef cacy reaches • Museum display, public buildings
to 100 lm/w at 5000K temperature. • Department stores

• Flexible optical design provides symmetric 60° beam angle to speci c applications.
• Easy to install and maintain, freely applied in factory, warehouse and versatile Fixture-White LED Lighting
commercial and industrial applications.
• Short circuit / Over current / Over temperature protection.

Mechanical Drawing Fixture-RGB LED Lighting

Photometric Data Controller Lighting

Candle Power Distribution Diagram Illuminance Distribution Unit: Lux Converter DMX Driver /
