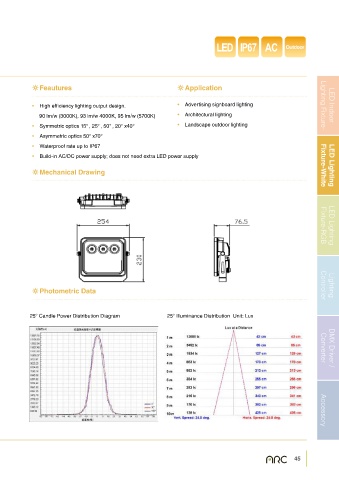

P. 46

LED  IP67        AC     Outdoor







                Feautures                                          Application


            •  High ef ciency lighting output design.          •  Advertising signboard lighting                  Lighting Fixture-  LED Indoor

                 90 lm/w (3000K), 93 lm/w 4000K, 95 lm/w (5700K)  •  Architectural lighting
            •  Symmetric optics 15° , 25° , 50° , 20° x40°     •  Landscape outdoor lighting
            •  Asymmetric optics 50° x70°
            •  Waterproof rate up to IP67

            •  Build-in AC/DC power supply; does not need extra LED power supply

                Mechanical Drawing                                                                                Fixture-White  LED Lighting















                                                                                                                  Fixture-RGB
                                                                                                                     LED Lighting






                Photometric Data                                                                                  Controller  Lighting




            25° Candle Power Distribution Diagram           25° Illuminance Distribution  Unit: Lux               Converter  DMX Driver /





























                                                                                                          45      Accessory
