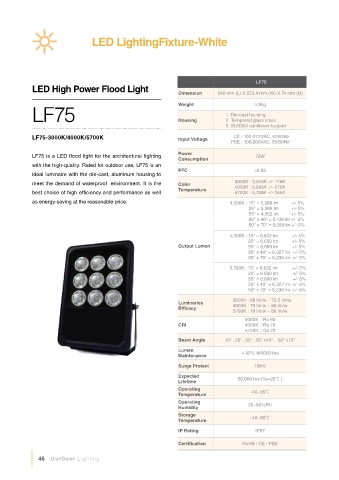

LED LightingFixture-White

LF75
LED High Power Flood Light Dimension 340 mm (L) X 253.4 mm (W) X 74 mm (H)

4.1Kg
LF75 Weight 1. Die-cast housing

Housing
2. Tempered glass cover
3. SUS304 cantilever support
LF75-3000K/4000K/5700K Input Voltage CE : 100-277VAC, 47/63Hz
PSE : 100/200VAC, 50/60Hz

LF75 is a LED flood light for the architectural lighting Power 75W
Consumption
with the high-quality. Rated for outdoor use, LF75 is an
PFC >0.95
ideal luminaire with the die-cast, aluminum housing to
meet the demand of waterproof environment. It is the Color 3000K : 3,045K +/- 175K
Temperature 4000K : 3,985K +/- 275K
best choice of high ef ciency and performance as well 5700K : 5,700K +/- 355K
as energy-saving at the reasonable price. 3,000K : 15° = 5,386 lm +/- 5%
25° = 5,386 lm +/- 5%
55° = 4,952 lm +/- 5%
20° x 40° = 5,138 lm +/- 5%
50° x 70° = 5,059 lm +/- 5%
4,000K : 15° = 6,632 lm +/- 5%
25° = 6,632 lm +/- 5%
Output Lumen 55° = 6,099 lm +/- 5%
20° x 40° = 6,327 lm +/- 5%
50° x 70° = 6,230 lm +/- 5%
5,700K : 15° = 6,632 lm +/- 5%
25° = 6,632 lm +/- 5%
55° = 6,099 lm +/- 5%
20° x 40° = 6,327 lm +/- 5%
50° x 70° = 6,230 lm +/- 5%
3000K : 68 lm/w ~ 72.5 lm/w
Luminaries 4000K : 79 lm/w ~ 86 lm/w
Ef cacy
5700K : 79 lm/w ~ 86 lm/w
3000K jRa 80
CRI 4000K jRa 70
5700K jRa 70
Beam Angle 15° , 25° , 55° , 20° x40° , 50° x70°
Lumen > 92% @6000 hrs
Maintenance

Surge Protect 10KV
Expected
Lifetime 50,000 hrs (Ta=25Ċ )
Operating
Temperature -40~55Ċ
Operating 20~90%RH
Humidity
Storage
Temperature -40~80Ċ
IP Rating IP67

Certi cation RoHS / CE / PSE

46 OutDoor Lighting
