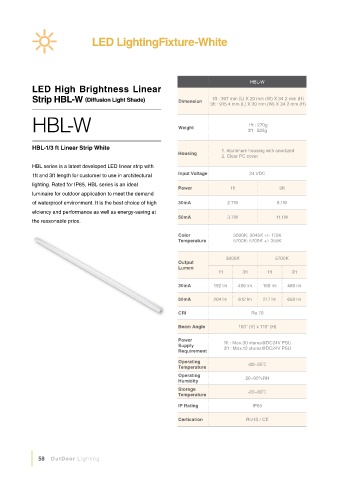

LED LightingFixture-White
HBL-W
LED High Brightness Linear
(
Strip HBL-W Diffusion Light Shade) Dimension 1ft : 307 mm (L) X 20 mm (W) X 34.2 mm (H)
3ft : 915.4 mm (L) X 20 mm (W) X 34.2 mm (H)
HBL-W Weight 1ft : 270g
3ft : 525g
HBL-1/3 ft Linear Strip White
Housing 1. Aluminum housing with anodized
2. Clear PC cover
HBL series is a latest developed LED linear strip with
1ft and 3ft length for customer to use in architectural Input Voltage 24 VDC
lighting. Rated for IP65, HBL series is an ideal
Power 1ft 3ft
luminaire for outdoor application to meet the demand
of waterproof environment. It is the best choice of high 30mA 2.7W 8.1W
efciency and performance as well as energy-saving at
50mA 3.7W 11.1W
the reasonable price.
Color 3000K: 3045K +/- 175K
Temperature 5700K: 5700K +/- 355K
3000K 5700K
Output
Lumen
1ft 3ft 1ft 3ft
30mA 152 lm 456 lm 160 lm 480 lm
50mA 204 lm 612 lm 217 lm 650 lm
CRI Ra 70
Beam Angle 100° (V) x 110° (H)
Power 1ft : Max.30 xtures@DC24V PSU
Supply
Requirement 3ft : Max.10 xtures@DC24V PSU
Operating
Temperature -20~55Ċ
Operating 20~90%RH
Humidity
Storage
Temperature -20~80Ċ
IP Rating IP65
Certication RoHS / CE
58 OutDoor Lighting
