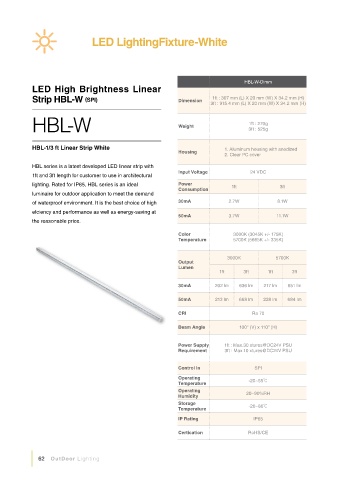

LED LightingFixture-White

HBL-W-Dimm
LED High Brightness Linear

1ft : 307 mm (L) X 20 mm (W) X 34.2 mm (H)
(
Strip HBL-W SPI) Dimension 3ft : 915.4 mm (L) X 20 mm (W) X 34.2 mm (H)
HBL-W Weight 1ft : 270g

3ft : 525g

HBL-1/3 ft Linear Strip White 1. Aluminum housing with anodized
Housing
2. Clear PC cover
HBL series is a latest developed LED linear strip with
Input Voltage 24 VDC
1ft and 3ft length for customer to use in architectural
lighting. Rated for IP65, HBL series is an ideal Power
Consumption 1ft 3ft
luminaire for outdoor application to meet the demand
of waterproof environment. It is the best choice of high 30mA 2.7W 8.1W
efciency and performance as well as energy-saving at
50mA 3.7W 11.1W
the reasonable price.

Color 3000K (3045K +/- 175K)
Temperature 5700K (5665K +/- 335K)

3000K 5700K
Output
Lumen
1ft 3ft 1ft 3ft

30mA 202 lm 636 lm 217 lm 651 lm

50mA 213 lm 668 lm 228 lm 684 lm

CRI Ra 70

Beam Angle 100° (V) x 110° (H)

Power Supply 1ft : Max.30 xtures@DC24V PSU
Requirement 3ft : Max.10 xtures@DC24V PSU

Control In SPI
Operating
Temperature -20~55Ċ
Operating 20~90%RH
Humidity
Storage
Temperature -20~80Ċ
IP Rating IP65

Certication RoHS/CE

62 OutDoor Lighting
