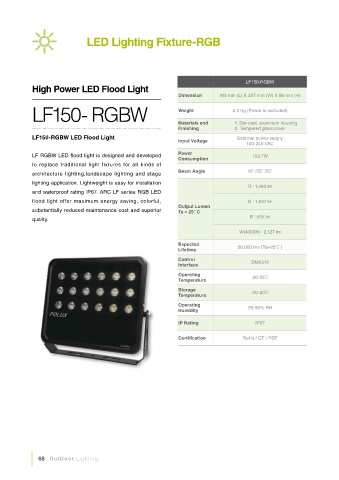

LED Lighting Fixture-RGB







                                                                                       LF150-RGBW
            High Power LED Flood Light
                                                                Dimension     415 mm (L) X 357 mm (W) X 86 mm (H)
            LF150- RGBW                                         Weight             8.3 Kg (Power is excluded)


                                                                Materials and            1. Die-cast, aluminum housing
                                                                Finishing          2. Tempered glass cover
            LF150-RGBW LED Flood Light                                              External power supply
                                                                Input Voltage
                                                                                        100-240 VAC
            LF RGBW LED flood light is designed and developed   Power                     153.7W
                                                                Consumption
            to  replace  traditional light fixtures for all kinds of
            architecture  lighting,landscape lighting and  stage   Beam Angle           15° /25° /55°
            lighting application. Lightweight is easy for installation
                                                                                        Rj1,480 lm
            and waterproof rating IP67. ARC LF series RGB LED
            flood light offer maximum energy saving, colorful,                          Gj1,947 lm
                                                                Output Lumen
            substantially reduced maintenance cost and superior   Ta = 25° C
            quality.                                                                     Bj505 lm

                                                                                     W(4000K)j2,127 lm

                                                                Expected             50,000 hrs (Ta=25Ċ )
                                                                Lifetime
                                                                Control                  DMX512
                                                                Interface
                                                                Operating
                                                                Temperature              -20-55Ċ
                                                                Storage
                                                                Temperature              -20-80Ċ
                                                                Operating
                                                                Humidity                20-90% RH

                                                                IP Rating                  IP67


                                                                Certi cation          RoHs / CE / PSE
























              68   OutDoor Lighting
