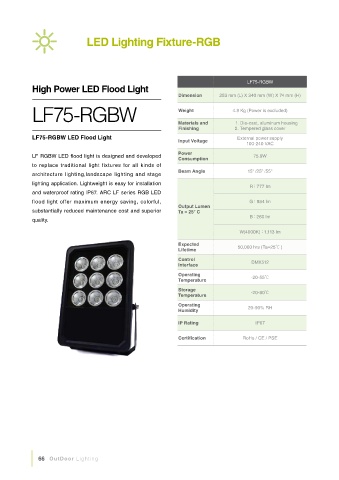

LED Lighting Fixture-RGB







                                                                                        LF75-RGBW
            High Power LED Flood Light
                                                                Dimension     253 mm (L) X 340 mm (W) X 74 mm (H)
            LF75-RGBW                                           Weight             4.8 Kg (Power is excluded)


                                                                Materials and             1. Die-cast, aluminum housing
                                                                Finishing          2. Tempered glass cover
            LF75-RGBW LED Flood Light                                               External power supply
                                                                Input Voltage
                                                                                        100-240 VAC

            LF RGBW LED flood light is designed and developed   Power                     75.9W
                                                                Consumption
            to  replace  traditional light fixtures for all kinds of
                                                                Beam Angle              15° /25° /55°
            architecture  lighting,landscape lighting and  stage
            lighting application. Lightweight is easy for installation
                                                                                         Rj777 lm
            and waterproof rating IP67. ARC LF series RGB LED
            flood light offer maximum energy saving, colorful,                           Gj984 lm
                                                                Output Lumen
            substantially reduced maintenance cost and superior   Ta = 25° C
                                                                                         Bj260 lm
            quality.
                                                                                     W(4000K)j1,113 lm

                                                                Expected             50,000 hrs (Ta=25Ċ )
                                                                Lifetime
                                                                Control                  DMX512
                                                                Interface
                                                                Operating
                                                                Temperature              -20-55Ċ
                                                                Storage                  -20-80Ċ
                                                                Temperature
                                                                Operating
                                                                Humidity                20-90% RH

                                                                IP Rating                  IP67


                                                                Certi cation          RoHs / CE / PSE
























              66   OutDoor Lighting
