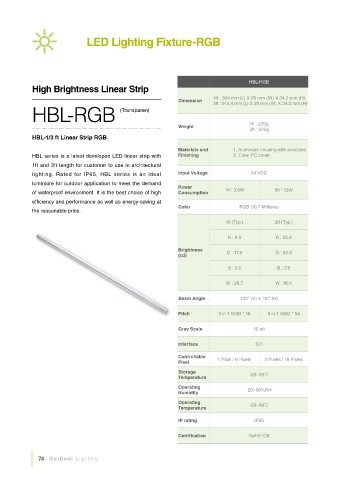

LED Lighting Fixture-RGB

HBL-RGB
High Brightness Linear Strip

1ft : 304 mm (L) X 20 mm (W) X 34.2 mm (H)
Dimension 3ft : 915.4 mm (L) X 20 mm (W) X 34.2 mm (H)
HBL-RGB (Transparen)

Weight 1ft : 270g
3ft : 525g
HBL-1/3 ft Linear Strip RGB

Materials and 1. Aluminum housing with anodized
HBL series is a latest developed LED linear strip with Finishing 2. Clear PC cover
1ft and 3ft length for customer to use in architectural
lighting. Rated for IP65, HBL series is an ideal Input Voltage 24 VDC
luminaire for outdoor application to meet the demand
Power
of waterproof environment. It is the best choice of high Consumption 1ftj3.8W 3ftj12W
ef ciency and performance as well as energy-saving at
Color RGB (16.7 Millions)
the reasonable price.
1ft (Typ.) 3ft (Typ.)

R : 8.5 R : 25.5

Brightness G : 17.6 G : 52.8
(cd)

B : 2.6 B : 7.8

W : 28.7 W : 86.1

Beam Angle 100° (V) x 110° (H)

Pitch 3 in 1 SMD * 18 3 in 1 SMD * 54

Gray Scale 10 bit

Interface SPI

Controllable 1 Pixel / 6 Pixels 3 Pixels / 18 Pixels
Pixel
Storage -20~55Ċ
Temperature
Operating 20~90%RH
Humidity
Operating
Temperature -20~80Ċ

IP rating IP65

Certi cation RoHS /CE

74 OutDoor Lighting
