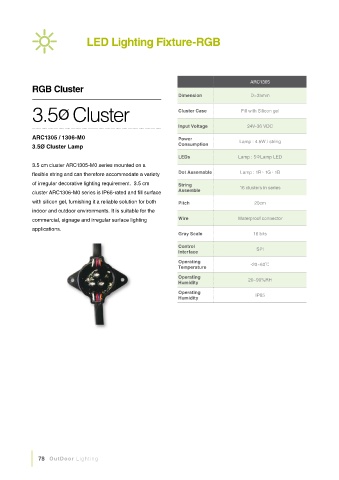

Page 79 - ARC KATALOG

LED Lighting Fixture-RGB

ARC1305
RGB Cluster
Dimension D=35mm
3.5 Cluster Cluster Case Fill with Silicon gel
Ø

Input Voltage 24V-36 VDC
ARC1305 / 1306-M0 Power
3.5Ø Cluster Lamp Consumption Lamp : 4.5W / string

LEDs Lamp : 5ƵLamp LED
3.5 cm cluster ARC1305-M0 series mounted on a
exible string and can therefore accommodate a variety Dot Assemable Lamp : 1Re1Ge1B
of irregular decorative lighting requirement. 3.5 cm String 16 clusters in series
cluster ARC1306-M0 series is IP65-rated and ll surface Assemble
with silicon gel, furnishing it a reliable solution for both Pitch 20cm
indoor and outdoor environments. It is suitable for the
commercial, signage and irregular surface lighting Wire Waterproof connector
applications.
Gray Scale 16 bits
Control SPI
Interface
Operating -20~60Ċ
Temperature
Operating 20~90%RH
Humidity

Operating
Humidity IP65

78 OutDoor Lighting
