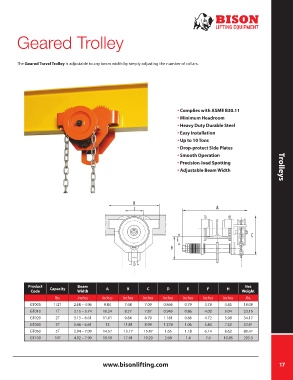

Geared Trolley

The Geared Travel Trolley is adjustable to any beam width by simply adjusting the number of collars.

Single Leg
• Complies with ASME B30.11
90º Load
Product Size Limit Length Hook • Minimum Headroom
Code inches feet Type
lbs. • Heavy Duty Durable Steel
CS11-FH-516 5/16" 4,500 10' Foundry • Easy Installation
CS21-FH-516 5/16" 4,500 20' Foundry
• Up to 10 Tons
CS11-FH-38 3/8" 7,100 10' Foundry
• Drop-protect Side Plates
CS21-FH-38 3/8" 7,100 20' Foundry
• Smooth Operation
CS11-FH-12 1/2" 12,000 10' Foundry
CS21-FH-12 1/2" 12,000 20' Foundry • Precision-load Spotting Trolleys
• Adjustable Beam Width

Double Leg
60º Load
Product Size Limit Length Hook
Code inches feet Type
lbs.
CS12-FH-516 5/16" 7,800 10' Foundry
CS22-FH-516 5/16" 7,800 20' Foundry
CS12-FH-38 3/8" 12,300 10' Foundry
CS22-FH-38 3/8" 12,300 20' Foundry
CS12-FH-12 1/2" 20,800 10' Foundry
CS22-FH-12 1/2" 20,800 20' Foundry

Quad Leg
Product Beam Net
60º Load Capacity A B C D E F H
Product Size Limit Length Hook Code Width Weight
Code inches feet Type
lbs. lbs. inches inches inches inches inches inches inches inches lbs.
CS14-FH-516 5/16" 11,700 10' Foundry GT005 1/2T 2.68 – 4.96 9.84 7.68 7.09 0.866 0.79 3.78 4.45 18.08
CS24-FH-516 5/16" 11,700 20' Foundry GT010 1T 3.15 – 5.74 10.24 8.27 7.87 0.945 0.86 4.02 5.04 23.15
CS14-FH-38 3/8" 18,400 10' Foundry GT020 2T 3.15 – 6.61 11.61 9.84 8.79 1.181 0.86 4.72 5.98 34.17
CS24-FH-38 3/8" 18,400 20' Foundry GT030 3T 3.46 – 6.61 13 11.81 8.99 1.378 1.06 5.43 7.32 52.91
CS14-FH-12 1/2" 31,200 10' Foundry GT050 5T 3.94 – 7.09 14.57 13.17 15.47 1.65 1.18 6.14 8.62 80.47
CS24-FH-12 1/2" 31,200 20' Foundry GT100 10T 4.92 – 7.99 19.19 17.91 19.29 2.68 1.4 7.9 10.85 205.3
