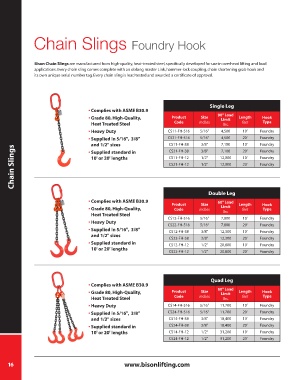

Page 16 - Bison Catalog

Chain Slings Foundry Hook

Bison Chain Slings are manufactured from high-quality, heat-treated steel, specifically developed for use in overhead lifting and load
applications. Every chain sling comes complete with an oblong master Link, hammer-lock coupling, chain shortening grab hook and
its own unique serial number tag. Every chain sling is load tested and awarded a certificate of approval.

Single Leg
• Complies with ASME B30.9
90º Load
• Grade 80, High-Quality, Product Size Limit Length Hook
Heat Treated Steel Code inches lbs. feet Type
• Heavy Duty CS11-FH-516 5/16" 4,500 10' Foundry
• Supplied in 5/16", 3/8" CS21-FH-516 5/16" 4,500 20' Foundry
and 1/2" sizes CS11-FH-38 3/8" 7,100 10' Foundry
Chain Slings 10' or 20' lengths CS11-FH-12 1/2" 12,000 10' Foundry
Foundry
20'
CS21-FH-38
3/8"
7,100
• Supplied standard in
CS21-FH-12
1/2"
Foundry
20'
12,000
Double Leg
• Complies with ASME B30.9 60º Load
Product Size Length Hook
• Grade 80, High-Quality, Code inches Limit feet Type
Heat Treated Steel lbs.
CS12-FH-516 5/16" 7,800 10' Foundry
• Heavy Duty
CS22-FH-516 5/16" 7,800 20' Foundry
• Supplied in 5/16", 3/8" CS12-FH-38 3/8" 12,300 10' Foundry
and 1/2" sizes
CS22-FH-38 3/8" 12,300 20' Foundry
• Supplied standard in CS12-FH-12 1/2" 20,800 10' Foundry
10' or 20' lengths
CS22-FH-12 1/2" 20,800 20' Foundry

Quad Leg
• Complies with ASME B30.9
60º Load
• Grade 80, High-Quality, Product Size Limit Length Hook
Heat Treated Steel Code inches lbs. feet Type
• Heavy Duty CS14-FH-516 5/16" 11,700 10' Foundry
• Supplied in 5/16", 3/8" CS24-FH-516 5/16" 11,700 20' Foundry
and 1/2" sizes CS14-FH-38 3/8" 18,400 10' Foundry
• Supplied standard in CS24-FH-38 3/8" 18,400 20' Foundry
10' or 20' lengths CS14-FH-12 1/2" 31,200 10' Foundry
CS24-FH-12 1/2" 31,200 20' Foundry

16 www.bisonlifting.com
