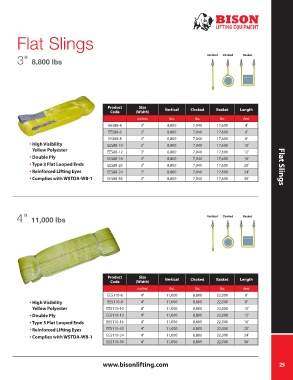

Page 25 - Bison Catalog
P. 25
Flat Slings
Vertical Choked Basket
3" 8,800 lbs
Product Size Vertical Choked Basket Length
Code (Width)
inches lbs. lbs. lbs. feet
EES88-4 3" 8,800 7,040 17,600 4'
EES88-6 3" 8,800 7,040 17,600 6'
EES88-8 3" 8,800 7,040 17,600 8'
• High Visibility EES88-10 3" 8,800 7,040 17,600 10'
Yellow Polyester
EES88-12 3" 8,800 7,040 17,600 12'
• Double Ply EES88-16 3" 8,800 7,040 17,600 16'
• Type 3 Flat Looped Ends EES88-20 3" 8,800 7,040 17,600 20' Flat Slings
• Reinforced Lifting Eyes EES88-24 3" 8,800 7,040 17,600 24'
• Complies with WSTDA-WB-1 EES88-30 3" 8,800 7,040 17,600 30'
4" 11,000 lbs Vertical Choked Basket
Product Size Vertical Choked Basket Length
Code (Width)
inches lbs. lbs. lbs. feet
EES110-6 4" 11,000 8,800 22,000 6'
• High Visibility EES110-8 4" 11,000 8,800 22,000 8'
Yellow Polyester EES110-10 4" 11,000 8,800 22,000 10'
• Double Ply EES110-12 4" 11,000 8,800 22,000 12'
• Type 3 Flat Looped Ends EES110-16 4" 11,000 8,800 22,000 16'
• Reinforced Lifting Eyes EES110-20 4" 11,000 8,800 22,000 20'
• Complies with WSTDA-WB-1 EES110-24 4" 11,000 8,800 22,000 24'
EES110-30 4" 11,000 8,800 22,000 30'
www.bisonlifting.com 25
