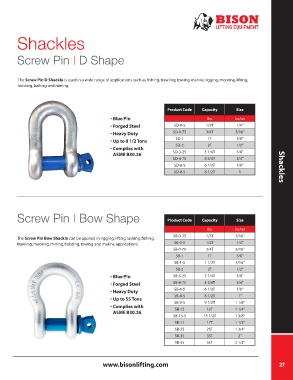

Page 27 - Bison Catalog

Shackles

Screw Pin | D Shape

The Screw Pin D Shackle is used in a wide range of applications such as fishing, trawling, towing, marine, rigging, mooring, lifting,
hoisting, lashing and mining.

Product Code Capacity Size
• Blue Pin lbs. inches
• Forged Steel SD-0-5 1/2T 1/4"
• Heavy Duty SD-0-75 3/4T 5/16"
SD-1 1T 3/8"
• Up to 8 1/2 Tons
SD-2 2T 1/2"
• Complies with
ASME B30.26 SD-3-25 3 1/4T 5/8"
SD-4-75 4 3/4T 3/4"
SD-6-5 6 1/2T 7/8" Shackles
SD-8-5 8 1/2T 1

Screw Pin | Bow Shape Product Code Capacity Size

lbs. inches
SB-0-35 1/3T 3/16"
The Screw Pin Bow Shackle can be applied in rigging, lifting, lashing, fishing,
trawling, mooring, mining, hoisting, towing and marine applications. SB-0-5 1/2T 1/4"
SB-0-75 3/4T 5/16"
SB-1 1T 3/8"
SB-1-5 1 1/2T 7/16"
SB-2 2T 1/2"
• Blue Pin SB-3-25 3 1/4T 5/8"
• Forged Steel SB-4-75 4 3/4T 3/4"
SB-6-5 6 1/2T 7/8"
• Heavy Duty
SB-8-5 8 1/2T 1"
• Up to 55 Tons
SB-9-5 9 1/2T 1 1/8"
• Complies with SB-12 12T 1 1/4"
ASME B30.26
SB-13-5 13 1/2T 1 3/8"
SB-17 17T 1 1/2"
SB-25 25T 1 3/4"
SB-35 35T 2"
SB-55 55T 2 1/2"
