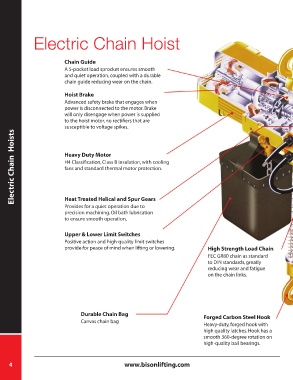

Page 4 - Bison Catalog

Electric Chain Hoist

Chain Guide
A 5-pocket load sprocket ensures smooth
and quiet operation, coupled with a durable
chain guide reducing wear on the chain.

Hoist Brake
Advanced safety brake that engages when
power is disconnected to the motor. Brake
will only disengage when power is supplied
to the hoist motor, no rectifiers that are
susceptible to voltage spikes.
Electric Chain Hoists Heavy Duty Motor

H4 Classification, Class B insulation, with cooling
fans and standard thermal motor protection.

Heat Treated Helical and Spur Gears
Provides for a quiet operation due to
precision machining. Oil bath lubrication
to ensure smooth operation.

Upper & Lower Limit Switches
Positive action and high-quality limit switches
provide for peace of mind when lifting or lowering. High Strength Load Chain
FEC GR80 chain as standard
to DIN standards, greatly
reducing wear and fatigue
on the chain links.

Durable Chain Bag Forged Carbon Steel Hook
Canvas chain bag
Heavy-duty, forged hook with
high quality latches. Hook has a
smooth 360-degree rotation on
high-quality ball bearings.

4 www.bisonlifting.com
