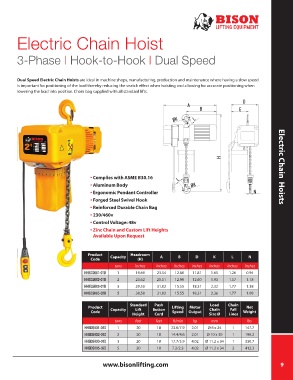

Page 9 - Bison Catalog

Electric Chain Hoist

3-Phase | Hook-to-Hook | Dual Speed

Dual Speed Electric Chain Hoists are ideal in machine shops, manufacturing, production and maintenance where having a slow speed
is important for positioning of the load thereby reducing the snatch effect when hoisting and allowing for accurate positioning when
lowering the load into position. Chain bag supplied with all standard lifts.

• Complies with ASME B30.16 Electric Chain Hoists
• Aluminum Body
• Ergonomic Pendant Controller
• Forged Steel Swivel Hook
• Reinforced Durable Chain Bag
• 230/460v
• Control Voltage: 48v
• Zinc Chain and Custom Lift Heights
Available Upon Request

Product Capacity Headroom A B D K L N
Code (H)
tons inches inches inches inches inches inches inches
HHBDSK01-01D 1 19.69 23.54 12.60 11.81 1.65 1.26 0.94
HHBDSK02-01D 2 23.62 25.51 12.99 12.60 1.93 1.57 1.18
HHBDSK03-01D 3 29.53 31.02 15.55 18.31 2.32 1.77 1.38
HHBDSK05-02D 5 38.58 31.02 15.55 18.31 2.36 1.77 1.69

Standard Push Load Chain
Product Lifting Motor Net
Code Capacity Lift Button Speed Output Chain Fall Weight
Height Cord Size Ø Lines
tons feet feet ft/min hp mm lbs.
HHBDSK01-01D 1 20 18 23.6/7.9 2.01 Ø 8 x 24 1 147.7
HHBDSK02-01D 2 20 18 14.4/4.6 2.01 Ø 10 x 30 1 196.2
HHBDSK03-01D 3 20 18 17.7/5.9 4.02 Ø 11.2 x 34 1 330.7
HHBDSK05-02D 5 20 18 7.2/2.3 4.02 Ø 11.2 x 34 2 412.3
