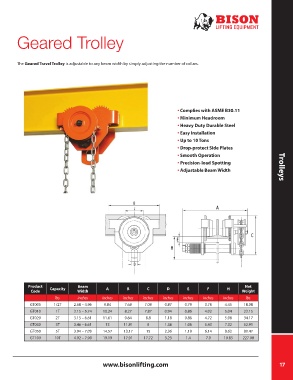

Chain Slings Foundry Hook Geared Trolley

Bison Chain Slings are manufactured from high-quality, heat-treated steel, specifically developed for use in overhead lifting and load The Geared Travel Trolley is adjustable to any beam width by simply adjusting the number of collars .
applications . Every chain sling comes complete with an oblong master Link, hammer-lock coupling, chain shortening grab hook and
its own unique serial number tag . Every chain sling is load tested and awarded a certificate of approval .

Single Leg
• Complies with ASME B30.9 • Complies with ASME B30.11
Load
• Grade 80, High-Quality, Product Size Limit Length Hook • Minimum Headroom
Heat Treated Steel Code inches lbs. feet Type • Heavy Duty Durable Steel
• Heavy Duty CS11-FH-516 5/16" 4,500 10' Foundry • Easy Installation
• Supplied in 5/16", 3/8" CS21-FH-516 5/16" 4,500 20' Foundry • Up to 10 Tons
and 1/2" sizes CS11-FH-38 3/8" 7,100 10' Foundry • Drop-protect Side Plates
Chain Slings 10' or 20' lengths CS11-FH-12 1/2" 12,000 10' Foundry • Precision-load Spotting Trolleys
Foundry
20'
3/8"
CS21-FH-38
7,100
• Supplied standard in
• Smooth Operation
12,000
1/2"
CS21-FH-12
Foundry
20'
• Adjustable Beam Width
Double Leg
• Complies with ASME B30.9 Load
Product Size Length Hook
• Grade 80, High-Quality, Code inches Limit feet Type
Heat Treated Steel lbs.
CS12-FH-516 5/16" 7,800 10' Foundry
• Heavy Duty
CS22-FH-516 5/16" 7,800 20' Foundry
• Supplied in 5/16", 3/8" CS12-FH-38 3/8" 12,300 10' Foundry
and 1/2" sizes
CS22-FH-38 3/8" 12,300 20' Foundry
• Supplied standard in CS12-FH-12 1/2" 20,800 10' Foundry
10' or 20' lengths
CS22-FH-12 1/2" 20,800 20' Foundry

Quad Leg
• Complies with ASME B30.9 Product Beam Net
Load Capacity A B C D E F H
• Grade 80, High-Quality, Product Size Limit Length Hook Code Width Weight
Heat Treated Steel Code inches lbs. feet Type lbs. inches inches inches inches inches inches inches inches lbs.
• Heavy Duty CS14-FH-516 5/16" 11,700 10' Foundry GT005 1/2T 2 .68 – 4 .96 9 .84 7 .68 7 .09 0 .87 0 .79 3 .78 4 .45 18 .08
• Supplied in 5/16", 3/8" CS24-FH-516 5/16" 11,700 20' Foundry GT010 1T 3 .15 – 5 .74 10 .24 8 .27 7 .87 0 .94 0 .86 4 .02 5 .04 23 .15
and 1/2" sizes CS14-FH-38 3/8" 18,400 10' Foundry GT020 2T 3 .15 – 6 .61 11 .61 9 .84 8 .8 1 .18 0 .86 4 .72 5 .98 34 .17
• Supplied standard in CS24-FH-38 3/8" 18,400 20' Foundry GT030 3T 3 .46 – 6 .61 13 11 .81 9 1 .38 1 .06 5 .43 7 .32 52 .91
10' or 20' lengths CS14-FH-12 1/2" 31,200 10' Foundry GT050 5T 3 .94 – 7 .09 14 .57 13 .17 15 2 .36 1 .18 6 .14 8 .62 80 .47
CS24-FH-12 1/2" 31,200 20' Foundry GT100 10T 4 .92 – 7 .99 19 .19 17 .91 17 .72 3 .23 1 .4 7 .9 10 .85 227 .08
