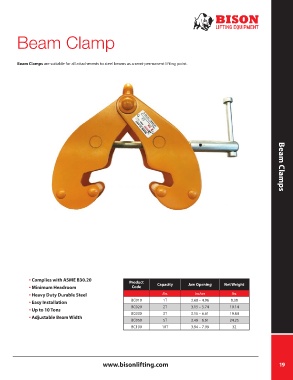

Plain Trolley Beam Clamp

The Push Travel Plain Trolley is adjustable to any beam width by simply adjusting the number of collars . Beam Clamps are suitable for all attachments to steel beams as a semi-permanent lifting point .

Trolleys Beam Clamps

• Complies with ASME B30.11
• Minimum Headroom
• Heavy Duty Durable Steel
• Easy Installation
• Up to 10 Tons
• Drop-protect Side Plates
• Smooth Operation
• Adjustable Beam Width

Product Capacity Beam A B C D E F H Net
Code Width Weight • Complies with ASME B30.20
Product
lbs. inches inches inches inches inches inches inches inches lbs. • Minimum Headroom Code Capacity Jaw Opening Net Weight
PT005 1/2T 2 .68 – 4 .96 8 .27 7 .68 7 .09 0 .87 0 .79 3 .78 3 .54 12 .13 • Heavy Duty Durable Steel lbs. inches lbs.
PT010 1T 3 .15 – 5 .74 9 .06 8 .27 7 .87 0 .94 0 .86 4 .02 3 .87 18 .08 BC010 1T 2 .68 – 4 .96 8 .38
• Easy Installation
PT020 2T 3 .15 – 6 .61 9 .65 9 .84 8 .8 1 .18 0 .86 4 .72 4 .92 28 .66 BC020 2T 3 .15 – 5 .74 10 .14
• Up to 10 Tons
PT030 3T 3 .46 – 7 .99 11 .02 11 .81 9 1 .38 1 .06 5 .43 5 .51 46 .30 BC030 3T 3 .15 – 6 .61 19 .84
• Adjustable Beam Width
PT050 5T 3 .94 – 7 .99 13 .19 13 .17 13 .17 1 .65 1 .18 6 .14 6 .69 74 .96 BC050 5T 3 .46 – 6 .61 24 .25
PT100 10T 4 .92 – 7 .99 18 .7 17 .91 19 .29 2 .86 1 .26 6 .88 10 .85 180 BC100 10T 3 .94 – 7 .09 32
