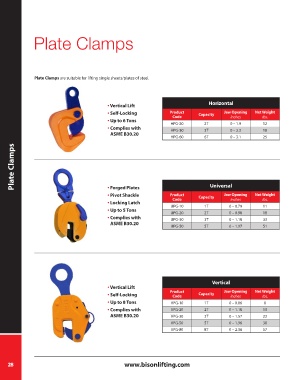

Page 28 - Bison Catalog

Plate Clamps Drum Lifters

Horizontal Clamp

Plate Clamps are suitable for lifting single sheets/plates of steel . The Horizontal Drum Lifting Clamp is designed to lift and transport drums in a upright position . It can be used to lift drums with or
without their lids by gripping the rim of the drum .

Horizontal Vertical Drum Lifter
• Vertical Lift
• Self-Locking Product Capacity Jaw Opening Net Weight Product Code Capacity Jaw Opening
Code inches lbs. lbs. inches
• Up to 6 Tons
HPG-20 2T 0 – 1 .9 12 HDL-1 1,300 22" – 23"
• Complies with HPG-30 3T 0 – 2 .3 18
ASME B30.20
HPG-60 6T 0 – 3 .1 25
Plate Clamps • Horizontal Lift Drum Lifters

Universal
• Forged Plates
• Complies with ASME B30.20
• Pivot Shackle Product Capacity Jaw Opening Net Weight • Heavy Duty Steel
Code inches lbs.
• Locking Latch
UPG-10 1T 0 – 0 .79 11
• Up to 5 Tons
UPG-20 2T 0 – 0 .98 18
• Complies with UPG-30 3T 0 – 1 .18 33
ASME B30.20
Chain Sling
UPG-50 5T 0 – 1 .97 51

The Drum Lifting Chain Sling is designed for lifting drums horizontally . Also suitable for lifting
a variety of drums, including any size of drums without a cover .

Vertical Chain Sling Drum Lifter
• Vertical Lift
Product Jaw Opening Net Weight Capacity Jaw Opening
• Self-Locking Code Capacity inches lbs. Product Code lbs. inches
• Up to 8 Tons VPG-10 1T 0 – 0 .86 8 SDL-1 1,300 0 – 0 .98”
• Complies with VPG-20 2T 0 – 1 .18 13
ASME B30.20 VPG-30 3T 0 – 1 .57 22
• Vertical and Horizontal Lift
VPG-50 5T 0 – 1 .96 38
• Heavy Duty Steel Chain
VPG-80 8T 0 – 2 .36 57
• Complies with ASME B30.20

28 www.bisonlifting.com www.bisonlifting.com 29
