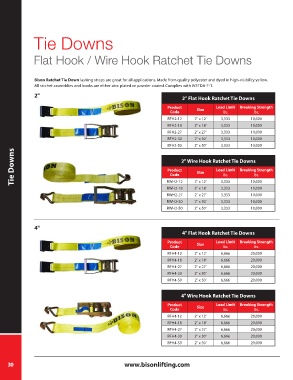

Page 30 - Bison Catalog

Tie Downs Tie Downs

Flat Hook / Wire Hook Ratchet Tie Downs Winch Straps

Bison Ratchet Tie Down lashing straps are great for all applications . Made from quality polyester and dyed in high-visibility yellow . Secure loads to flatbed trailers using Winch Straps with industrial strength flat hook or wire hook attachments
All ratchet assemblies and hooks are either zinc plated or powder coated . Complies with WSTDA-T-1 . and high quality webbing .
2"
2" Flat Hook Ratchet Tie Downs
Product Size Load Limit Breaking Strength
Code lbs. lbs.
RFH2-12 2" x 12' 3,333 10,000
RFH2-18 2" x 18' 3,333 10,000
RFH2-27 2" x 27' 3,333 10,000
RFH2-30 2" x 30' 3,333 10,000
RFH2-50 2" x 50' 3,333 10,000
Tie Downs Product 2" Wire Hook Ratchet Tie Downs lbs. Wire Hook Tie Downs

Load Limit Breaking Strength
Size
lbs.
Code
RWH2-12
2" x 18'
3,333
10,000
RWH2-18 2" x 12' 3,333 10,000
RWH2-27 2" x 27' 3,333 10,000
RWH2-30 2" x 30' 3,333 10,000
RWH2-50 2" x 50' 3,333 10,000

4" Flat Hook
4" Flat Hook Ratchet Tie Downs
Product Load Limit Breaking Strength
Code Size lbs. lbs.
RFH4-12 2" x 12' 6,666 20,000
RFH4-18 2" x 18' 6,666 20,000
RFH4-27 2" x 27' 6,666 20,000
RFH4-30 2" x 30' 6,666 20,000
RFH4-50 2" x 50' 6,666 20,000

Working Breaking
Product Code Size Hook Type
4" Wire Hook Ratchet Tie Downs Load Limit Strength
• High visibility, yellow polyester
lbs. lbs.
Product Load Limit Breaking Strength • Zinc Plated/Powder Coated Hooks
Code Size lbs. lbs. WSF4-27 4" x 27' 6,666 20,000 Flat
• Up to 40'
RFH4-12 2" x 12' 6,666 20,000 WSF4-30 4" x 30' 6,666 20,000 Flat
• Meets DOT Standards
RFH4-18 2" x 18' 6,666 20,000 WSF4-40 4" x 40' 6,666 20,000 Flat
RFH4-27 2" x 27' 6,666 20,000 WSW4-27 4" x 27' 6,666 20,000 Wire
RFH4-30 2" x 30' 6,666 20,000 WSW4-30 4" x 30' 6,666 20,000 Wire
RFH4-50 2" x 50' 6,666 20,000 WSW4-40 4" x 40' 6,666 20,000 Wire

30 www.bisonlifting.com www.bisonlifting.com 31
