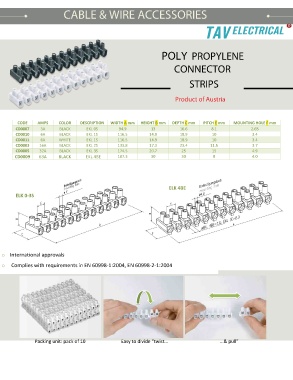

Page 10 - TAV CATELOGUE RGB

CABLE & WIRE ACCESSORIES

³

POLY PROPYLENE

CONNECTOR

STRIPS

Product of Austria

CODE AMPS COLOR DESCRIPTION WIDTH A mm HEIGHT B mm DEPTH C mm PITCH E mm MOUNTING HOLE F mm
CD0007 3A BLACK EKL 0S 94.9 13 16.6 8.1 2.65
CD0010 6A BLACK EKL 1S 116.5 14.9 18.9 10 3.4
CD0011 6A WHITE EKL 1S 116.5 14.9 18.9 10 3.4
CD0003 16A BLACK EKL 2S 133.8 17.3 23.4 11.5 3.7
CD0005 32A BLACK EKL 3S 174.5 20.7 25 15 4.9
CD0009 63A BLACK EKL 4BE 187.3 30 30 8 4.0

ELK 4BE
ELK 0-3S

o International approvals

o Complies with requirements in EN 60998-1:2004, EN 60998-2-1:2004

Packing unit: pack of 10 Easy to divide “twist… …& pull”
