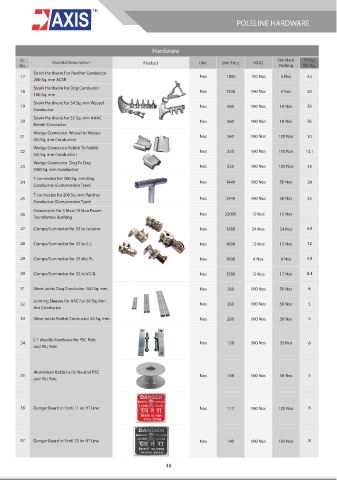

Page 50 - New Price List

POLELINE HARDWARE

Hardware

Sr. Material Description MOQ Standard Gross
No. Product Unit Unit Price Packing Wt. Kg.
Strain Hardware For Panther Conductor
17 Nos 1800 100 Nos 5 Nos 44
200 Sq. mm ACSR
Strain Hardware for Dog Conductor
18 Nos 1108 100 Nos 5 Nos 40
100 Sq. mm
Strain Hardware for 34 Sq. mm Weasel
19 Nos 560 100 Nos 10 Nos 36
Conductor
Strain Hardware for 55 Sq. mm AAAC
20 Nos 560 100 Nos 10 Nos 36
Rabbit Conductor
Wedge Connector Weasel to Weasel
21 Nos 260 100 Nos 100 Nos 10
(34 Sq. mm Conductor)
Wedge Connector Rabbit To Rabbit
22 Nos 320 100 Nos 100 Nos 13.1
(55 Sq. mm Conductor )
Wedge Connector Dog To Dog
23 Nos 520 100 Nos 100 Nos 15
(100 Sq. mm Conductor)
T-connector For 100 Sq. mm Dog
24 Nos 1440 100 Nos 50 Nos 20
Conductor (Compression Type)
T-connector for 200 Sq. mm Panther
25 Nos 2540 100 Nos 50 Nos 25
Conductor (Compression Type)
Connectors For 5 Mva/10 Mva Power
26 Nos 32000 12 Nos 12 Nos
Transformer Bushing
27 Clamps/Connector for 33 kv Isolator Nos 1280 24 Nos 24 Nos 4.8

28 Clamps/Connector for 33 kv C.t. Nos 1600 12 Nos 12 Nos 12

29 Clamps/Connector for 33 kKv P.t. Nos 1600 6 Nos 6 Nos 4.8

30 Clamps/Connector for 33 kv V.C.B. Nos 1280 12 Nos 12 Nos 8.4

31 Sleve Joints Dog Conductor 100 Sq. mm Nos 260 100 Nos 50 Nos 6

Jointing Sleeves for AAC For 50 Sq. Mm
32 Nos 260 100 Nos 50 Nos 5
Ant Conductor
33 Sleve Joints Rabbit Conductor 55 Sq. mm Nos 260 100 Nos 50 Nos 5

L.T shackle Hardware for PSC Pole
34 Nos 128 500 Nos 50 Nos 6
and RSJ Pole

Aluminium Bobbins for Neutral PSC
35 Nos 108 100 Nos 50 Nos 5
and RSJ Pole

36 Danger Board in Yard. 11 kv HT Line Nos 112 100 Nos 100 Nos 8

37 Danger Board in Yard. 33 kv HT Line Nos 140 100 Nos 100 Nos 8

46
