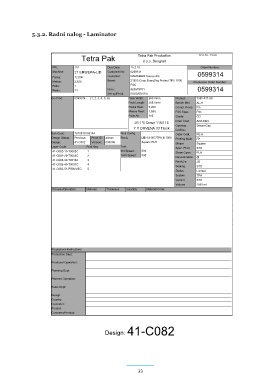

5.3.2. Radni nalog - Laminator

Tetra Pak Tetra Pak Production 17.2.16. 14.20
d.o.o. Beograd
PPL 391 Due Date: 18.2.16. Order Number:
Machine: 21 ERWEPA-LID Customer No: 0259131 0599314
Packs: 72,000 Customer: RAMSEIER Suisse AG
Meters: 3,820 Brand: 21550 Coop EveryDay Protect TPA 1000 Production Order Number:
Rolls: 1 FSC
Reels: 14 Id no: 923579701 0599314
Set-up/Prod: 00:00/00:09 h
Co-Prod: 0599314 [1, 2, 3, 4, 5, 6] Pack Width: 260.0mm Product 7555-811-56
Pack Length: 305.0mm Barrier Mtrl. AL-H
Packs Reel: 5,200 Compl. Procs Fin
Meters Reel: 1,590 FSC Spec. FSC
Pack Alt: 105 Grade CD
JR 1*5 Down 115/115 Inner Coat. AD/LD/LC
Y Y DRVENA 33 Truck Opening StreamCap
facilities
Ean Code: 7610818105144 Web Config: Outer Coat. PE-H
Design Status: Previous Proof ID: aclrws Block: LID-12-007/TPA jll 1000 Printing Meth. FP
Design: 41-C082 Version: 000006 Square PLH Shape Square
Layer Code: Print Seq: Tool: Spec. Prod. STD
41-C082-10-T0083C 1 Std Speed: 500 Straw Open. PLH
41-C082-29-T0053C 2 Tech Speed: 500 Denomination /jll
41-C082-30-T0014C 3 Reelsize JR
41-C082-49-T0097C 4 Sealing STD
41-C082-51-PRBLUEC 5
Status Limited
System TPA
Variant STD
Volume 1000 ml
Process/Operation: Material: Thickness: Quantity: Material Code:
Lamin. layer 1 - EXT A Plastic 19.0 gsm 109.04 kg R301002000 LDPE
Lamin. layer 2 - EXT B Plastic 19.0 gsm 109.04 kg R301002000 LDPE
Alufoil Alufoil 24.0 gsm 137.56 kg R2812-566 24 gsm, 8.35 µm, 300 mm, 1566 mm
Int.layer1 - EXT C Plastic 6.0 gsm 34.43 kg R307007600 Adh. Polym. juice
Int.layer2 - EXT D Plastic 14.0 gsm 80.34 kg R301002000 LDPE
Int.layer3 - EXT E Plastic 25.0 gsm 143.47 kg RP00100000 30353045
Ext. layer - EXT F Plastic 16.0 gsm 91.82 kg R301002000 LDPE

Productions Instructions:
Production Dept:
Produced Operation:
Planning Dept:

Planned Operation:
Sales Dept:
Design:
Country:
Customer:
Product:
Customer/Product:

Design: 41-C082
