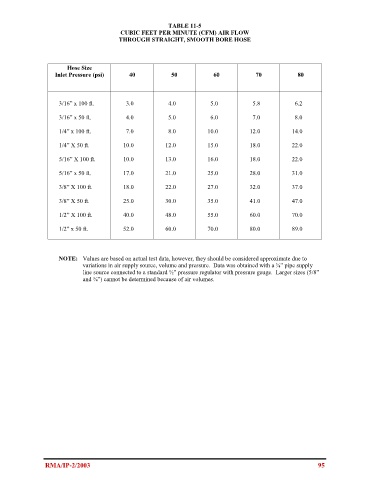

TABLE 11-5
CUBIC FEET PER MINUTE (CFM) AIR FLOW
THROUGH STRAIGHT, SMOOTH BORE HOSE

Hose Size
Inlet Pressure (psi) 40 50 60 70 80

3/16” x 100 ft. 3.0 4.0 5.0 5.8 6.2

3/16” x 50 ft. 4.0 5.0 6.0 7.0 8.0

1/4” x 100 ft. 7.0 8.0 10.0 12.0 14.0

1/4” X 50 ft. 10.0 12.0 15.0 18.0 22.0

5/16” X 100 ft. 10.0 13.0 16.0 18.0 22.0

5/16” x 50 ft. 17.0 21.0 25.0 28.0 31.0

3/8” X 100 ft. 18.0 22.0 27.0 32.0 37.0

3/8” X 50 ft. 25.0 30.0 35.0 41.0 47.0

1/2” X 100 ft. 40.0 48.0 55.0 60.0 70.0

1/2” x 50 ft. 52.0 60.0 70.0 80.0 89.0

NOTE: Values are based on actual test data, however, they should be considered approximate due to
variations in air supply source, volume and pressure. Data was obtained with a ¾” pipe supply
line source connected to a standard ½” pressure regulator with pressure gauge. Larger sizes (5/8”
and ¾”) cannot be determined because of air volumes.

RMA/IP-2/2003 95
