P. 56

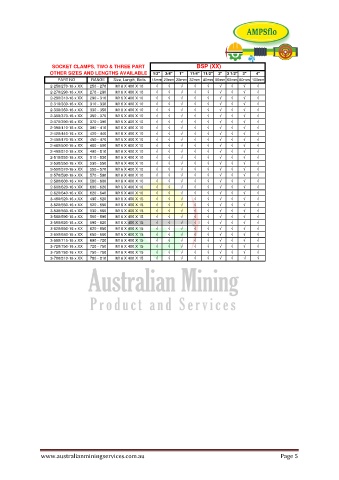

SOCKET CLAMPS, TWO & THREE PART BSP (XX)
OTHER SIZES AND LENGTHS AVAILABLE 1/2" 3/4" 1" 11/4" 11/2" 2" 2 1/2" 3" 4"
PART NO RANGE Size, Length, Bolts 15mm 20mm 25mm 32mm 40mm 50mm 65mm 80mm 100mm
2-250/270-16 x XX 250 - 270 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-270/290-16 x XX 270 - 290 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-290/310-16 x XX 290 - 310 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-310/330-16 x XX 310 - 330 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-330/350-16 x XX 330 - 350 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-350/370-16 x XX 350 - 370 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-370/390-16 x XX 370 - 390 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-390/410-16 x XX 390 - 410 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-420/440-16 x XX 420 - 440 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-450/470-16 x XX 450 - 470 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-480/500-16 x XX 480 - 500 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-490/510-16 x XX 490 - 510 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-510/530-16 x XX 510 - 530 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-530/550-16 x XX 530 - 550 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-550/570-16 x XX 550 - 570 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-570/590-16 x XX 570 - 590 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-580/600-16 x XX 580 - 600 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-600/620-16 x XX 600 - 620 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
2-620/640-16 x XX 620 - 640 M16 X 400 X 10 √ √ √ √ √ √ √ √ √
3-490/520-16 x XX 490 - 520 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-520/550-16 x XX 520 - 550 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-530/560-16 x XX 530 - 560 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-560/590-16 x XX 560 - 590 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-590/620-16 x XX 590 - 620 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-620/650-16 x XX 620 - 650 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-650/680-16 x XX 650 - 680 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-690/715-16 x XX 690 - 720 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-720/750-16 x XX 720 - 750 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-750/780-16 x XX 750 - 780 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
3-780/810-16 x XX 780 - 810 M16 X 400 X 15 √ √ √ √ √ √ √ √ √
