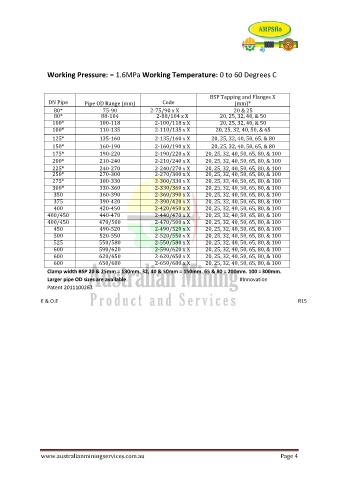

Page 60 - a compendium of pipe repair clamps - Pipe couplings and tapping equiptment 2016_Neat

Working Pressure: = 1.6MPa Working Temperature: 0 to 60 Degrees C

BSP Tapping and Flanges X
DN Pipe Pipe OD Range (mm) Code (mm)*
80* 75-90 2-75/90 x X 20 & 25
80* 88-104 2-88/104 x X 20, 25, 32, 40, & 50
100* 100-118 2-100/118 x X 20, 25, 32, 40, & 50
100* 110-135 2-110/135 x X 20, 25, 32, 40, 50, & 65
125* 135-160 2-135/160 x X 20, 25, 32, 40, 50, 65, & 80
150* 160-190 2-160/190 x X 20, 25, 32, 40, 50, 65, & 80
175* 190-220 2-190/220 x X 20, 25, 32, 40, 50, 65, 80, & 100
200* 210-240 2-210/240 x X 20, 25, 32, 40, 50, 65, 80, & 100
225* 240-270 2-240/270 x X 20, 25, 32, 40, 50, 65, 80, & 100
250* 270-300 2-270/300 x X 20, 25, 32, 40, 50, 65, 80, & 100
275* 300-330 2-300/330 x X 20, 25, 32, 40, 50, 65, 80, & 100
300* 330-360 2-330/360 x X 20, 25, 32, 40, 50, 65, 80, & 100
350 360-390 2-360/390 x X 20, 25, 32, 40, 50, 65, 80, & 100
375 390-420 2-390/420 x X 20, 25, 32, 40, 50, 65, 80, & 100
400 420-450 2-420/450 x X 20, 25, 32, 40, 50, 65, 80, & 100
400/450 440-470 2-440/470 x X 20, 25, 32, 40, 50, 65, 80, & 100
400/450 470/500 2-470/500 x X 20, 25, 32, 40, 50, 65, 80, & 100
450 490-520 2-490/520 x X 20, 25, 32, 40, 50, 65, 80, & 100
500 520-550 2-520/550 x X 20, 25, 32, 40, 50, 65, 80, & 100
525 550/580 2-550/580 x X 20, 25, 32, 40, 50, 65, 80, & 100
600 590/620 2-590/620 x X 20, 25, 32, 40, 50, 65, 80, & 100
600 620/650 2-620/650 x X 20, 25, 32, 40, 50, 65, 80, & 100
600 650/680 2-650/680 x X 20, 25, 32, 40, 50, 65, 80, & 100
Clamp width BSP 20 & 25mm = 130mm. 32, 40 & 50mm = 150mm. 65 & 80 = 200mm. 100 = 300mm.
Larger pipe OD sizes are available. #Innovation
Patent 2011100263

E & O.E R15
