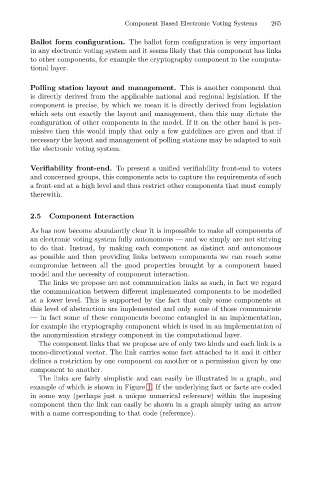

Ballot form configuration. The ballot form configuration is very important
in any electronic voting system and it seems likely that this component has links
to other components, for example the cryptography component in the computa-
tional layer. Component Based Electronic Voting Systems 265
Polling station layout and management. This is another component that
is directly derived from the applicable national and regional legislation. If the
component is precise, by which we mean it is directly derived from legislation
which sets out exactly the layout and management, then this may dictate the
configuration of other components in the model. If it on the other hand is per-
missive then this would imply that only a few guidelines are given and that if
necessary the layout and management of polling stations may be adapted to suit
the electronic voting system.

Verifiability front-end. To present a unified verifiability front-end to voters
and concerned groups, this components acts to capture the requirements of such
a front-end at a high level and thus restrict other components that must comply
therewith.

2.5 Component Interaction

As has now become abundantly clear it is impossible to make all components of
an electronic voting system fully autonomous — and we simply are not striving
to do that. Instead, by making each component as distinct and autonomous
as possible and then providing links between components we can reach some
compromise between all the good properties brought by a component based
model and the necessity of component interaction.
The links we propose are not communication links as such, in fact we regard
the communication between different implemented components to be modelled
at a lower level. This is supported by the fact that only some components at
this level of abstraction are implemented and only some of those communicate
— in fact some of these components become entangled in an implementation,
for example the cryptography component which is used in an implementation of
the anonymisation strategy component in the computational layer.
The component links that we propose are of only two kinds and each link is a
mono-directional vector. The link carries some fact attached to it and it either
defines a restriction by one component on another or a permission given by one
component to another.
The links are fairly simplistic and can easily be illustrated in a graph, and
example of which is shown in Figure 1. If the underlying fact or facts are coded
in some way (perhaps just a unique numerical reference) within the imposing
component then the link can easily be shown in a graph simply using an arrow
with a name corresponding to that code (reference).
