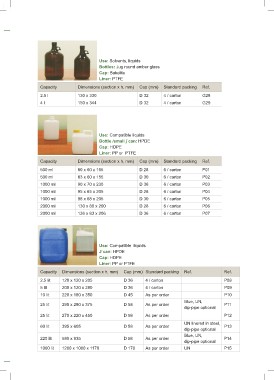

Page 12 - Catalogue 2015

Use: Solvents, liquids
Bottles: Jug round amber glass
Cap: Bakelite
Liner: PTFE

Capacity Dimensions (section x h, mm) Cap (mm) Standard packing Ref.
2.5 l
4l 130 x 330 D 32 4 / carton G28
150 x 344 D 32 4 / carton G29

Use: Compatible liquids
Bottle /small j`can: HPDE
Cap: HDPE
Liner: PP or PTFE

Capacity Dimensions (section x h, mm) Cap (mm) Standard packing Ref.

500 ml 80 x 60 x 165 D 28 6 / carton P01
500 ml 83 x 60 x 155 D 30 6 / carton P02
1000 ml 90 x 70 x 230 D 36 6 / carton P03
1000 ml 95 x 65 x 205 D 28 6 / carton P04
1000 ml 98 x 68 x 205 D 30 6 / carton P05
2000 ml 130 x 80 x 200 D 28 6 / carton P06
2000 ml 136 x 83 x 206 D 36 6 / carton P07

Use: Compatible liquids
J`can: HPDE
Cap: HDPE
Liner: PP or PTFE

Capacity Dimensions (section x h, mm) Cap (mm) Standard packing Ref. Ref.

2.5 lit 120 x 120 x 205 D 36 4 / carton Blue, UN, P08
5 lit 200 x 120 x 280 D 36 4 / carton dip-pipe optional P09
10 lit 220 x 180 x 350 D 45 As per order P10

25 lit 290 x 280 x 375 D 58 As per order P11

25 lit 270 x 220 x 450 D 58 As per order P12

60 lit 395 x 605 D 58 As per order UN linered in steel, P13
D 58 As per order dip-pipe optional P14
220 lit 580 x 935 D 170 As per order Blue, UN, P15
1000 lit 1200 x 1000 x 1170 dip-pipe optional

UN
