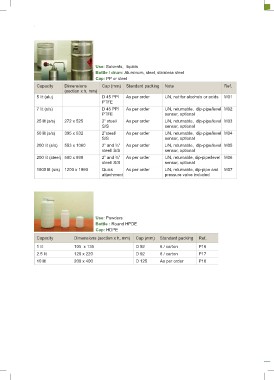

Page 13 - Catalogue 2015

Use: Solvents, liquids
Bottle / drum: Aluminum, steel, stainless steel
Cap: PP or steel

Capacity Dimensions Cap (mm) Standard packing Note Ref.
5 lit (alu) (section x h, mm) As per order UN, not for alcohols or acids M01
D 45 PP/
PTFE

7 lit (s/s) D 45 PP/ As per order UN, returnable, dip-pipe/level M02
PTFE sensor, optional

25 lit (s/s) 272 x 525 2” steel/ As per order UN, returnable, dip-pipe/level M03
S/S sensor, optional

50 lit (s/s) 395 x 532 2”steel/ As per order UN, returnable, dip-pipe/level M04
S/S sensor, optional

200 lit (s/s) 553 x 1060 2” and ¾” As per order UN, returnable, dip-pipe/level M05
steel/ S/S sensor, optional

200 lit (steel) 580 x 890 2” and ¾” As per order UN, returnable, dip-pipe/level M06
steel/ S/S sensor, optional

1500 lit (s/s) 1200 x 1960 Quick As per order UN, returnable, dip-pipe and M07
pressure valve included
attachment

Use: Powders
Bottle : Round HPDE
Cap: HDPE

Capacity Dimensions (section x h, mm) Cap (mm) Standard packing Ref.

1 lit 105 x 135 D 92 6 / carton P16
2.5 lit 120 x 220 D 92 6 / carton P17
10 lit 200 x 400 D 125 As per order P18
